BGB12232-07

Model No. BGB12232-07

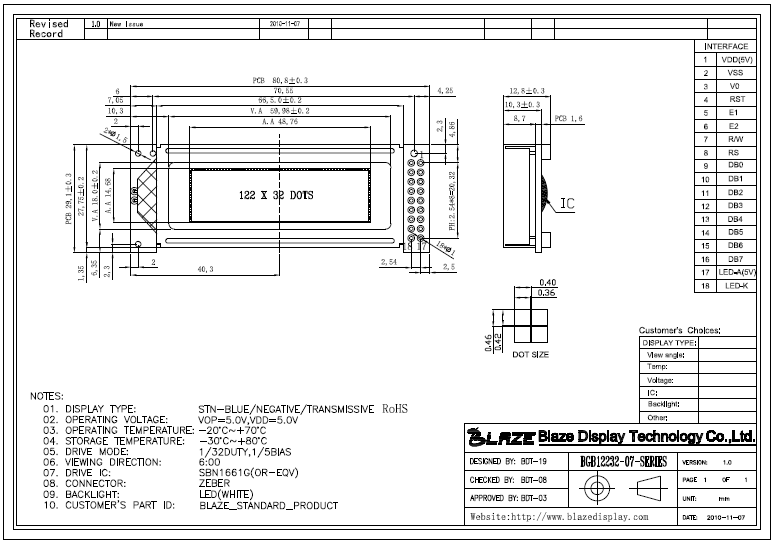

Outline sizemm): 80.80 × 29.10 × 12.80

Viewing Area59.98 × 18.00

Active Area 48.76 × 14.68

Controller IC SBN1661G

Interface SPI & Parallel

Remarks 1×18PIN

BacklightLED

Part Number: BGB12232-07

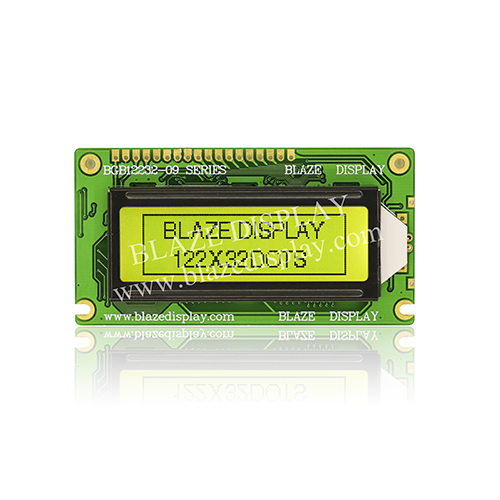

● Grahpic LCD 122 x 32 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (SBN1661G or Equivalent)
● +3.3V / +5.0V power supply
● 1/32 duty, 1/5bias
● Viewing Direction: 6H / 12H
● Interface: 6800 8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T

SPECIFICATIONS

Interface Pin Function

Pin No.

Symbol

Description

1

VDD(5V)

Power supply for logic

2

VSS

Ground(0V)

3

V0

Contrast Adjustment

4

RST

Reset

5

E1

Enable signal

6

E2

Enable signal

7~14

R/W

Read/Write select signal

15

RS

Data/ Instruction select signal

16

DB0~DB7

Data bus line

17

LED-A(5V)

Power supply for B/L +

18

LED-K

Power supply for B/L -
