BGB16064-02
Model No. BGB16064-02

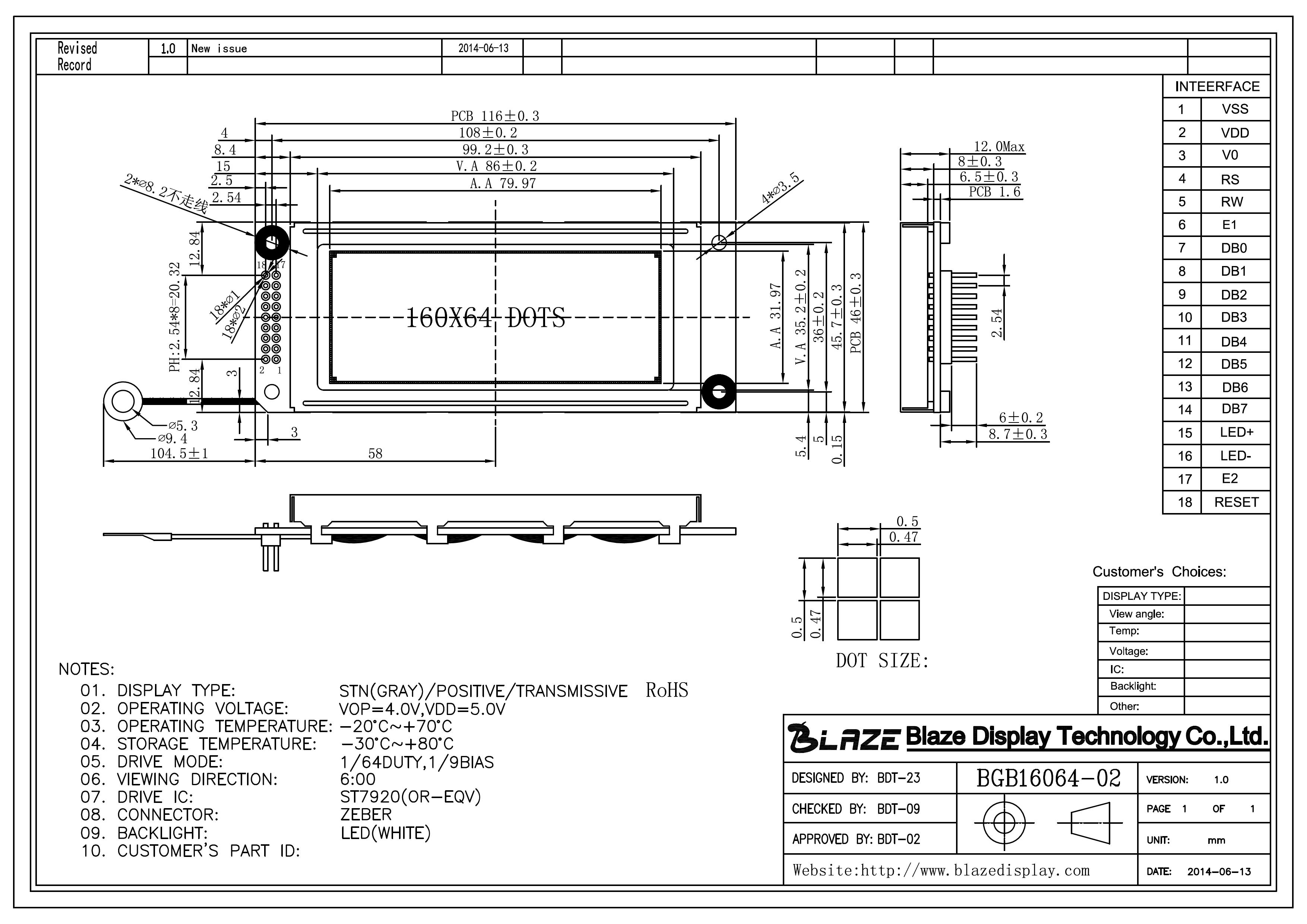

Outline size（mm）： 116.00 × 46.00 × 12.0
Viewing Area：86.00 × 35.20
Active Area： 79.97 × 31.97
Controller IC： ST7920or Eqv
Interface： SPI & Parallel
Remarks： 2×9PIN
Backlight：LED
Part Number: BGB16064-02
● Graphic LCD 160 x 64 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (ST7920 or Equivalent)
● +3.3V / +5.0V power supply
● 1/32 duty, 1/5bias
● Viewing Direction: 6H / 12H
● Interface: 6800 8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
|
SPECIFICATIONS |
||
|
Interface Pin Function |
||
|
Pin No. |
Symbol |
Description |
|
1 |
VSS |
Ground(0V) |
|
2 |
VDD |
Power supply for logic |
|
3 |
V0 |
Contrast Adjustment |
|
4 |
RS |
Data/ Instruction select signal |
|
5 |
RW |
Serial data input |
|
6 |
E1 |
Enable trigger |
|
7~14 |
DB0~DB7 |
Data bus line33 |
|
15 |
LED+ |
Power supply for backlight |
|
16 |
LED- |
Ground for backlight |
|
17 |
E2 |
Enable trigger |
|
18 |
RESET |
reset |
