Module graphique LCD série 192x64

Modules d'affichage LCD graphique série 192 * 64

Display Format Picture Model No. Size
(inch)		 Outline Dimension
(mm)		 Viewing Area
(mm)		 Active Area
(mm)		 View Direction Interface IC Part No. Control-Board Brightness
(cd/m²)		 Recommended Touch Screen Temperature
(°C)		 O-Film
182*64

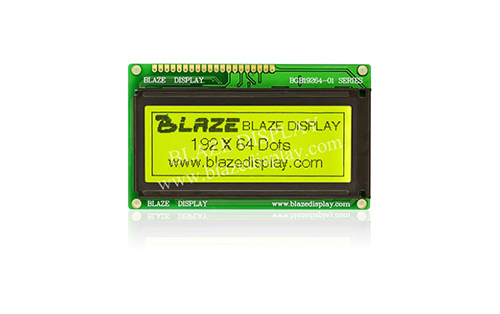

BGB19264-01
BGB19264-01 3.26 100.00 × 60.00 × 11.30 84.00 × 31.00 78.67 × 26.19 6H / 12H SPI & Parallel AIP31108 or Eqv -20-+70
192*64
BGB19264-02
BGB19264-02 3.26 111.00 × 46.00 × 12.00 84.50 × 31.00 78.67 × 26.19 6H / 12H SPI & Parallel AIP31108 or Eqv -20-+70
192*64
BGB19264-04
BGB19264-04 4.05 130.00 × 65.00 × 12.50 104.00 × 39.00 97.50 × 32.47 6H / 12H SPI & Parallel AIP31108 or Eqv -20-+70
192*64
BGB19264-05
BGB19264-05 4.05 130.00 × 65.00 × 12.50 104.00 × 39.00 97.49 × 32.46 6H / 12H SPI & Parallel ST7920 or Eqv -20-+70
192*64
BGB19264-06
BGB19264-06 4.05 130.00 × 53.00 × 12.50 104.00 × 39.00 97.50 × 32.47 6H / 12H SPI & Parallel AIP31108 or Eqv -20-+70
192*64
BGB19264-07
BGB19264-07 4.05 120.00 × 62.00 × 12.50 104.00 × 39.00 97.50 × 32.47 6H / 12H SPI & Parallel AIP31108 , AIP31107(OR-EQV) -20-+70
192*64
BGB19264-07B
BGB19264-07B 4.05 120.00 × 62.00 × 12.50 104.00 × 39.00 97.50 × 32.47 6H / 12H SPI & Parallel AIP31108 or Eqv -20-+70
