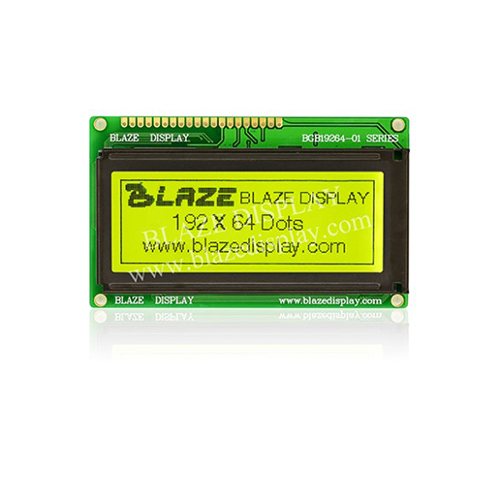

BGB19264-01
Model No. BGB19264-01
Taille du contour (mm): 100.00 × 60.00 × 11.30
Zone d'observation ： 84.00 × 31.00
Surface active ： 78.67 × 26.19
Contrôleur IC: AIP31108 ou Eqv.
Interface: SPI et parallèle
Remarques: 1 × 20PIN
Rétro-éclairage: LED
Numéro de référence: BGB19264-01
● LCD Grahpic 192 x 64 (points)
● FSTN-Gris / STN-Gris / STN-YG / STN-Bleu
● Contrôleur intégré (AIP31108 ou équivalent)
● Alimentation + 3.3V / + 5.0V
● 1/64 devoir, 1/9bias
● Direction de visée: 6H / 12H
● Interface: parallèle 6800 8 bits
● Rétroéclairage (DEL latérale): blanc / vert / bleu / jaune-vert / RVB / orange / orange
● Temp: N.T / W.T / Super W.T
|
SPECIFICATIONS |
|||
|
Interface Pin Function |
|||
|
Pin No. |
Symbol |
Description |
|
|
1~8 |
DB7~DB0 |
Data bus line |
|
|
9 |
E |
Enable signal |
|
|
10 |
R/W |
Read/Write select signal |
|
|
11 |
RS |
Data/ Instruction select signal |
|
|
12 |
V0 |
Contrast Adjustment |
|
|
13 |
VDD(5V) |
Power supply for logic |
|
|
14 |
VSS |
Ground(0V) |
|
|
15 |
CSA |
Chip select signal |
|
|
16 |
CSB |
Chip select signal |
|
|
17 |
VEE |
Negative voltage output |
|
|
18 |
RST |
Reset signal |
|
|
19 |
LED-A(5V) |
Power supply for backlight (+5.0V) |
|
|
20 |
LED-K |
Ground for backlight(0V) |
|
|
|
|||
|
Mechanical Data |
|||
|
Item |
Standard Value |
Unit |
|
|
Module Dimension |
100.0 x 60.0 |
Mm |
|
|
Viewing Area |
84.0 x 31.0 |
mm |
|
|
Mounting Hole |
93.0 x 55.0 |
mm |
|
|
Dots Pitch |
0.41 x 0.41 |
mm |
|
|
Dots Size |
0.36 x 0.36 |
mm |
|
|
|
|||
|
Electrical Characteristics |
|||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
|
Input Voltage |
VDD |
5 |
V |
|
Recommended LCD Driving |
VDD-VO |
8.7 |
V |
