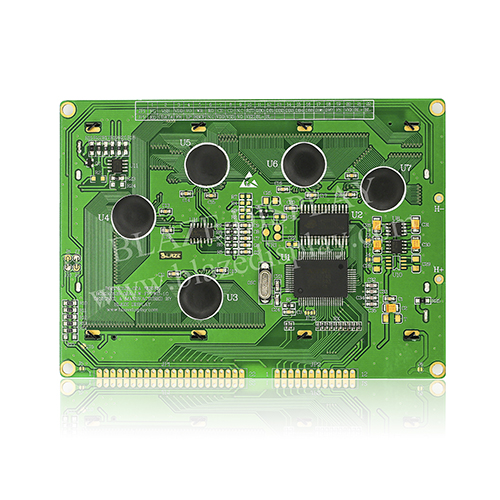

BGB240128-02A
Model No. BGB240128-02A
Taille du contour (mm): 144.00 × 104.00 × 12.00
Zone d'observation ： 114.00 × 64.00
Surface active ： 107.97 × 57.57
Contrôleur IC: RA6963 ou Eqv.
Interface: 8080 parallèle
Remarques: 1 × 34PIN
Rétro-éclairage: LED
Numéro de pièce: BGB240128-02A
● LCD de caractères 240 x 128 (points)
● FSTN-Gris / STN-Gris / STN-YG / STN-Bleu
● Contrôleur intégré ((RA6963 ou équivalent)
● Alimentation + 3.3V / + 5.0V
● 1/128 devoir, 1 / 12bias
● Direction de visée: 6H / 12H
● Interface: parallèle 8080 8 bits
● Rétroéclairage (DEL latérale): blanc / vert / bleu / jaune-vert / RVB / orange / orange
● Temp: N.T / W.T / Super W.T
|
SPECIFICATIONS |
|||
|
Interface Pin Function |
|||
|
Pin No. |
Symbol |
Description |
|
|
1 |
FGND |
Frame ground |
|
|
2 |
VSS |
Ground(0V) |
|
|
3 |
VDD |
Power supply for logic(+5.0V) |
|
|
4 |
V0 |
Contrast Adjustment |
|
|
5 |
/WR |
Data write. Write data into LCD Controller |
|
|
6 |
/RD |
Data read. Read data from LCD Controller |
|
|
7 |
/CE |
Chip select signal |
|
|
8 |
C/D |
Data/ Instruction select signal |
|
|
9 |
N.C |
No connection |
|
|
10 |
/RES |
Controller reset signal, Active Low |
|
|
11~18 |
DB0~DB7 |
Data bus line |
|
|
19 |
FS |
Selection of font; H: 6 * 8, L: 8 * 8 |
|
|
20 |
VLCD |
Negative Voltage Output |
|
|
21 |
BL+ |
Power supply for backlight (+5.0V) |
|
|
22 |
BL- |
Ground for backlight(0V) |
|
|
|
H+(9V) |
Heater anode H+ |
|
|
|
H- |
Heater cathode H- |
|
|
23 |
ED |
Data output for columns |
|
|
24 |
CDATA |
Synchronous signal for row driver |
|
|
25 |
FR |
Frame signal |
|
|
26 |
CH1 |
Heating sheet power supply(or NC) |
|
|
27 |
HSCP |
Shift clock pulse for column driver of upper area of LCD |
|
|
28 |
N.C |
No connection |
|
|
29 |
VDD |
Power supply for logic(+5.0V) |
|
|
30 |
VSS |
Ground(0V) |
|
|
31 |
V0 |
Contrast Adjustment |
|
|
32 |
VLCD |
Negative Voltage Output |
|
|
33 |
BL+ |
Power supply for backlight (+5.0V) |
|
|
34 |
BL- |
Ground for backlight(0V) |
|
|
|
|||
|
Mechanical Data |
|||
|
Item |
Standard Value |
Unit |
|
|
Module Dimension |
144.0 x 104.0 |
mm |
|
|
Viewing Area |
114.0 x 64.0 |
mm |
|
|
Mounting Hole |
138.0 x97.0 |
mm |
|
|
Dots Pitch |
0.45 x 0.45 |
mm |
|
|
Dots Size |
0.40 x 0.40 |
mm |
|
|
|
|||
|
Electrical Characteristics |
|||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
|
Input Voltage |
VDD |
5 |
V |
|
Recommended LCD Driving |
VDD-VO |
18.0 |
V |
