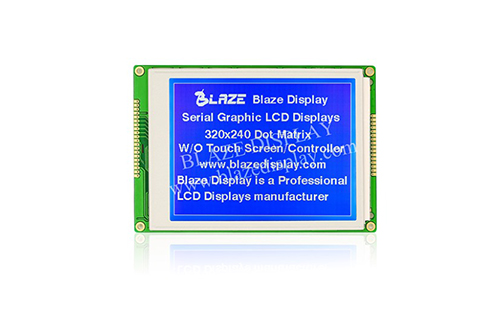

Module graphique LCD série 320x240

Modules d'affichage graphique LCD série 320 * 240

Display Format Picture Model No. Size
(inch)		 Outline Dimension
(mm)		 Viewing Area
(mm)		 Active Area
(mm)		 View Direction Interface IC Part No. Control-Board Brightness
(cd/m²)		 Recommended Touch Screen Temperature
(°C)		 O-Film
320*240
BGB320240-06A
BGB320240-06A 5.67 160.00 × 109.00 × 12.10 122.00 × 92.00 115.17 × 86.37 6H / 12H 6800/8080 8-bit Parallel RA8835 or Eqv -20-+70
320*240
BGB320240-02
BGB320240-02 5.67 160.00 × 109.00 × 11.00 122.00 × 92.00 115.17 × 86.37 6H / 12H 6800/8080 8-bit Parallel RA8835 or Eqv -20-+70
320*240
BGB320240-03
BGB320240-03 4.72 139.00 × 100.00 × 12.50 103.00 × 79.00 95.97 × 71.97 6H / 12H 6800/8080 8-bit Parallel RA8835 or Eqv -20-+70
320*240
BGB320240-05A
BGB320240-05A 4.72 139.00 × 100.00 × 12.50 103.00 × 79.00 95.97 × 71.97 6H / 12H 6800/8080 8-bit Parallel RA8835 or Eqv -20-+70
320*240
BGB320240-06
BGB320240-06 5.67 160.00 × 109.00 × 11.00 122.00 × 92.00 115.17 × 86.37 6H / 12H 6800/8080 8-bit Parallel RA8835 or Eqv -20-+70
320*240
BGB320240-06B
BGB320240-06B 5.67 160.00 × 109.00 × 11.00 122.00 × 92.00 115.17 × 86.37 6H / 12H 4-bit X-driver data without controller interface No Controller -20-+70
320*240
BGB320240-07
BGB320240-07 5.67 148.02 × 120.24 × 21.00 120.14 × 92.14 115.18 × 86.38 6H / 12H 6800/8080 8-bit Parallel RA8835 or Eqv -20-+70
