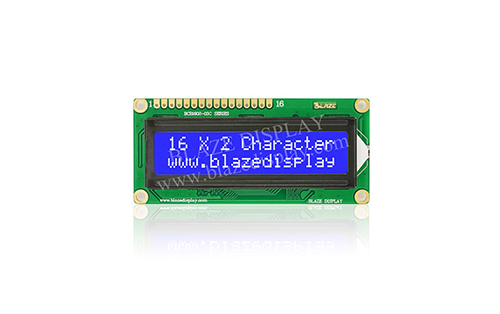

Module LCD à caractères série 16X2

16 x 2 modules d'affichage LCD à caractères série

Display Format Picture Model No. Size
(inch)		 Outline Dimension
(mm)		 Viewing Area
(mm)		 Active Area
(mm)		 View Direction Interface IC Part No. Control-Board Brightness
(cd/m²)		 Recommended Touch Screen Temperature
(°C)		 O-Film
16x2
BCB1602-12
BCB1602-12 100.00 × 38.80 × 13.00 80.20 × 20.40 76.37 × 16.02 6H / 12H Parallel ST7066U or Eqv None -20~+70
16x2
BCB1602-11
BCB1602-11 122.00 × 44.00 × 14.00 99.00 × 24.00 94.84 × 19.90 6H / 12H Parallel ST7066 or Equivalent None -20~+70
16x2
BCB1602-10
BCB1602-10 122.00 × 44.00 × 12.00 99.00 × 24.00 94.80 × 19.90 6H / 12H Parallel ST7066 or Equivalent None -20~+70
16x2
BCB1602-09
BCB1602-09 103.00 ×50.00× 12.00 61.00 × 15.70 55.46 × 10.76 6H / 12H Parallel ST7066 or Equivalent None -20~+70
16x2
BCB1602-08B
BCB1602-08B 85.00 × 36.00 × 12.00 64.30 × 16.00 55.46 × 10.76 6H / 12H Parallel ST7066 or Equivalent None -20~+70
16x2
BCB1602-04
BCB1602-04 80.70 × 40.00 × 8.60 66.70 × 18.00 62.76 × 11.60 6H / 12H Parallel ST7066 or Equivalent None -20~+70
16x2
BCB1602-05A
BCB1602-05A 84.00 × 44.00 × 14.00 62.00 × 18.00 55.62× 11.50 6H / 12H Parallel ST7066U or Eqv None -20~+70
16x2
BCB1602-07B
BCB1602-07B 85.00 × 30.00 × 11.80 64.30 × 16.00 55.46 × 10.76 6H / 12H Parallel ST7066 or Equivalent None -20~+70
16x2
BCB1602-08A
BCB1602-08A 85.00 × 36.00 × 12.00 64.30 × 16.00 55.46 × 10.76 6H / 12H Parallel ST7066 or Equivalent None -20~+70
