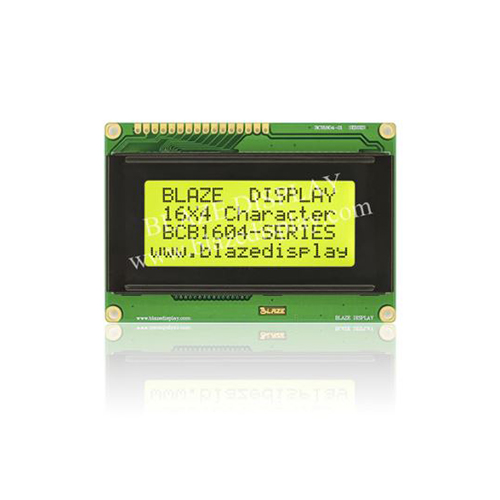

BCB1604-01D
Model No. BCB1604-01D
Taille du contour (mm): 87,00 × 60,00 × 12,80
Zone d'affichage ： 62.00 × 25.60
Surface active ： 56.20 × 20.80
Contrôleur IC ： ST7066U ou Eqv.
Interface: parallèle
Rétro-éclairage: LED
Remarques: 1 × 16PIN
Numéro de pièce: BCB1604-01D
● LCD de caractères 16 × 4
● FSTN-Gris / STN-Gris / STN-YG / STN-Bleu
● Contrôleur intégré (ST7066 ou équivalent)
● Alimentation + 3.3V / + 5.0V
● 1/16 devoir, 1/5 biais
● Direction de visée: 6H / 12H
● Interface: parallèle 6800 4/8 bits, SPI / I2C en option (IC RW1063)
● Rétroéclairage (DEL latérale): blanc / vert / bleu / jaune-vert / RVB / orange / orange
● Temp: N.T / W.T / Super W.T
● Polices: anglais-japonais / anglais-européen / anglais-cyrillique (russe)
|
Interface Pin Function |
|||||||||||
|
Pin No. |
Symbol |
Description |
|||||||||
|
1 |
VSS |
Ground |
|||||||||
|
2 |
VDD |
Power supply for logic |
|||||||||
|
3 |
VO |
Contrast Adjustment |
|||||||||
|
4 |
RS |
Data/ Instruction select signal |
|||||||||
|
5 |
R/W |
Read/Write select signal |
|||||||||
|
6 |
E |
Enable signal |
|||||||||
|
7~14 |
DB0~DB7 |
Data bus line |
|||||||||
|
15 |
LED-A |
Backlight power supply |
|||||||||
|
16 |
LED-K |
Backlight ground |
|||||||||
|
|
|||||||||||
|
Mechanical Data |
|||||||||||
|
Item |
Standard Value |
Unit |
|||||||||
|
Module Dimension |
87.0x 60.0 |
mm |
|||||||||
|
Viewing Area |
62.0 x25.6 |
mm |
|||||||||
|
Mounting Hole |
82.0x 55.0 |
mm |
|||||||||
|
Character Size |
2.95x 4.75 |
mm |
|||||||||
|
|
|||||||||||
|
Electrical Characteristics |
|||||||||||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
||||||||
|
Input Voltage |
VDD |
5 |
V |
||||||||
|
Recommended LCD Driving |
VDD-VO |
3.7 |
V |
||||||||
