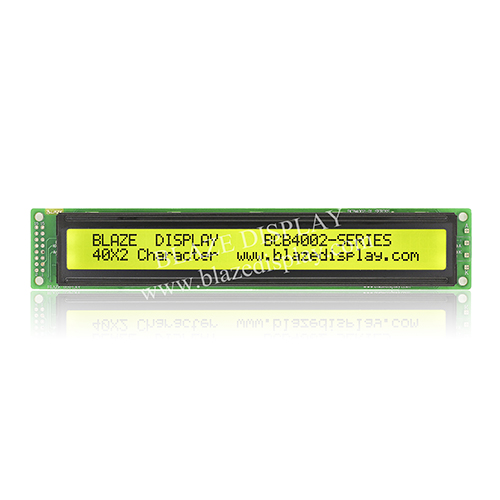

BCB4002-01
Model No. BCB4002-01
Taille du contour (mm): 182,00 × 33,50 × 14,00
Zone d'affichage ： 154.40 × 16.50
Surface active ： 147.50 × 11.50
Contrôleur IC ： ST7066U ou Eqv.
Interface: parallèle
Rétro-éclairage: LED
Remarques: 2 × 8PIN
Numéro de pièce: BCB4002-01
● Caractère LCD 40x2
● FSTN-Gris / STN-Gris / STN-YG / STN-Bleu
● Contrôleur intégré (ST7066U ou équivalent)
● Alimentation + 3.3V / + 5.0V
● 1/16 devoir, 1/5 biais
● Direction de visée: 6H / 12H
● Interface: parallèle 6800 4/8 bits, SPI / I2C en option (RW1063 IC)
● Rétroéclairage (DEL latérale): blanc / vert / bleu / jaune-vert / RVB / orange / orange
● Temp: N.T / W.T / Super W.T
● Polices: anglais-japonais / anglais-européen / anglais-cyrillique (russe)
|
Interface Pin Function |
||||||||||||
|
Pin No. |
Symbol |
Description |
||||||||||
|
1 |
VSS |
Ground |
||||||||||
|
2 |
VDD |
Power supply for logic |
||||||||||
|
3 |
VO |
Contrast Adjustment |
||||||||||
|
4 |
RS |
Data/ Instruction select signal |
||||||||||
|
5 |
R/W |
Read/Write select signal |
||||||||||
|
6 |
E |
Enable signal for IC1 |
||||||||||
|
7~14 |
DB0~DB7 |
Data bus line |
||||||||||
|
15 |
LED-A |
Backlight power supply |
||||||||||
|
16 |
LED-K |
Backlight ground |
||||||||||
|
|
||||||||||||
|
Mechanical Data |
||||||||||||
|
Item |
Standard Value |
Unit |
||||||||||
|
Module Dimension |
182.0 x 33.5 |
mm |
||||||||||
|
Viewing Area |
154.4 x 16.5 |
mm |
||||||||||
|
Mounting Hole |
175.0 x 30.0 |
mm |
||||||||||
|
Character Size |
3.2 x 5.55 |
mm |
||||||||||
|
|
||||||||||||
|
Electrical Characteristics |
||||||||||||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
|||||||||
|
Input Voltage |
VDD |
5 |
V |
|||||||||
|
Recommended LCD Driving |
VDD-VO |
3.7 |
||||||||||
