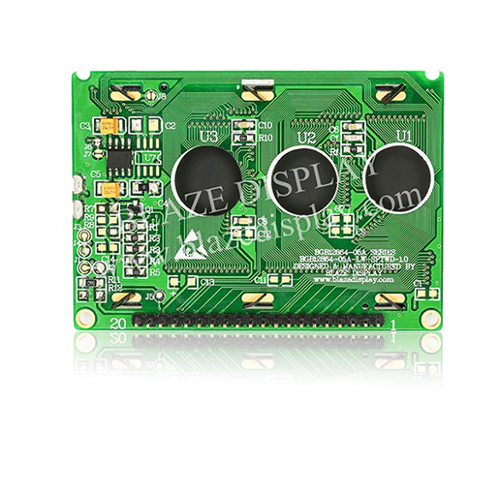

BGB12864-05A
Model No. BGB12864-05A
Taille du contour （mm） ： 75.00 × 52.70 × 9.10
Zone de visualisation: 60.00 × 32.60
Surface active ： 55.00 × 27.48
Contrôleur IC: AIP31108 ou Eqv.
Interface: SPI et parallèle
Remarques: 1 × 20PIN
Rétro-éclairage: LED
Numéro de pièce: BGB12864-05A

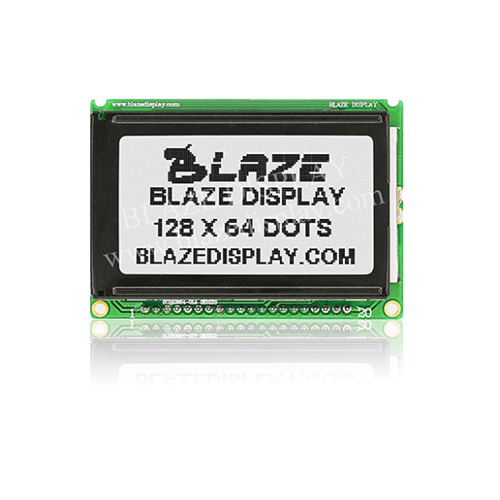

● LCD de caractères 128 x 64 (points)
● FSTN-Gris / STN-Gris / STN-YG / STN-Bleu
● Contrôleur intégré (AIP31108 ou équivalent)
● Alimentation + 3.3V / + 5.0V
● 1/64 devoir, 1/9bias
● Direction de visée: 6H / 12H
● Interface: parallèle 6800 4/8 bits
● Rétroéclairage (DEL latérale): blanc / vert / bleu / jaune-vert / RVB / orange / orange
● Temp: N.T / W.T / Super W.T
|
SPECIFICATIONS |
|||
|
Interface Pin Function |
|||
|
Pin No. |
Symbol |
Description |
|
|
1 |
VDD |
Power supply for logic |
|
|
2 |
VSS |
Ground(0V) |
|
|
3 |
V0 |
Contrast Adjustment |
|
|
4~11 |
DB0~DB7 |
Data bus line |
|
|
12 |
CS1 |
Chip select signal |
|
|
13 |
CS2 |
Chip select signal |
|
|
14 |
RST |
Reset signal |
|
|
15 |
R/W |
Read/Write select signal |
|
|
16 |
D/I |
Data/ Instruction select signal |
|
|
17 |
E |
Enable signal |
|
|
18 |
VEE |
Negative voltage output |
|
|
19 |
LED-A |
Power supply for backlight (+5.0V) |
|
|
20 |
LED-K |
Ground for backlight(0V) |
|
|
|
|||
|
Mechanical Data |
|||
|
Item |
Standard Value |
Unit |
|
|
Module Dimension |
75.0 x 52.7 |
mm |
|
|
Viewing Area |
60.0 x 32.6 |
mm |
|
|
Mounting Hole |
70.0 x 49.7 |
mm |
|
|
Dots Pitch |
0.43 x 0.43 |
mm |
|
|
Dots Size |
0.39 x 0.39 |
mm |
|
|
|
|||
|
Electrical Characteristics |
|||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
|
Input Voltage |
VDD |
5 |
V |
|
Recommended LCD Driving |
VDD-VO |
8.7 |
V |
