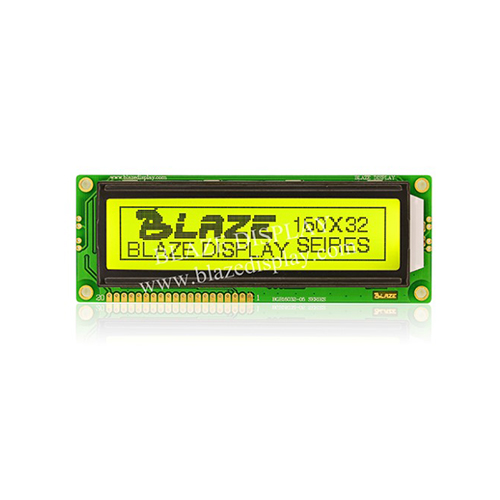

BGB16032-05
Model No. BGB16032-05
Taille du contour (mm): 122.00 × 44.00 × 13.3
Zone de visualisation: 99.00 × 24.00
Surface active ： 89.55 × 18.19
Contrôleur IC: AIP31020 ou Eqv.
Interface: SPI et parallèle
Remarques: 1 × 20PIN
Rétro-éclairage: LED
Numéro de pièce: BGB16032-05
● LCD graphique 160 x 32 (points)
● FSTN-Gris / STN-Gris / STN-YG / STN-Bleu
● Contrôleur intégré (AIP31020 ou équivalent)
● Alimentation + 3.3V / + 5.0V
● 1/32 devoir, 1/5 biais
● Direction de visée: 6H / 12H
● Interface: parallèle 6800 8 bits ou SPI
● Rétroéclairage (DEL latérale): blanc / vert / bleu / jaune-vert / RVB / orange / orange
● Temp: N.T / W.T / Super W.T
|
SPECIFICATIONS |
||
|
Interface Pin Function |
||
|
Pin No. |
Symbol |
Description |
|
1 |
VSS |
Ground(0V) |
|
2 |
VDD(3.0-5.0V) |
Power supply for logic |
|
3 |
V0 |
Contrast Adjustment |
|
4 |
RS(CS) |
Data/ Instruction select signal or chip select |
|
5 |
R/W(SID) |
Read/Write control or Serial data input |
|
6 |
E(CLK) |
Enable signal (Serial clock input) |
|
7~14 |
DB0~DB7 |
Data bus line33 |
|
|
PSB |
Serial/Parallel interface select |
|
|
N.C |
No connection |
|
|
RST |
System reset signal |
|
|
N.C |
No connection |
|
15 |
LED-A(3.3V) |
Power supply for backlight |
|
16 |
LED-K(0V) |
Ground for backlight |
