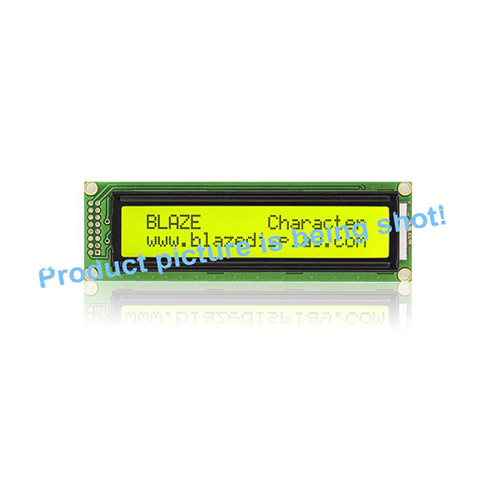

BGB16032-06
Model No. BGB16032-06
Taille du contour (mm): 122.00 × 44.00 × 13.30
Zone de visualisation: 99.00 × 24.00
Surface active ： 89.55 × 18.19
Contrôleur IC: AIP31108 ou Eqv.
Interface: SPI et parallèle
Remarques: 1 × 20PIN
Rétro-éclairage: LED
Numéro de pièce: BGB16032-06
● LCD graphique 160 x 32 (points)
● FSTN-Gris / STN-Gris / STN-YG / STN-Bleu
● Contrôleur intégré (AIP31108 ou équivalent)
● Alimentation + 3.3V / + 5.0V
● devoir 1/32, 1/16 biais
● Direction de visée: 6H / 12H
● Interface: parallèle 6800 8 bits
● Rétroéclairage (DEL latérale): blanc / vert / bleu / jaune-vert / RVB / orange / orange
● Temp: N.T / W.T / Super W.T
|
SPECIFICATIONS |
|||
|
Interface Pin Function |
|||
|
Pin No. |
Symbol |
Description |
|
|
1 |
VSS |
Ground(0V) |
|
|
2 |
VDD |
Power supply for logic |
|
|
3 |
V0 |
Contrast Adjustment |
|
|
4 |
RS(CS) |
Data/ Instruction select signal or chip select |
|
|
5 |
R/W(SID) |
Read/Write control or Serial data input |
|
|
6 |
E(CLK) |
Enable signal(Serial clock input) |
|
|
7-14 |
DB0~DB7 |
Data bus line |
|
|
15 |
/CS1 |
Chip select signal |
|
|
16 |
/CS2 |
Chip select signal |
|
|
17 |
RST |
reset |
|
|
18 |
/CS3 |
Chip select signal |
|
|
19 |
LED-A(3.3V) |
Power supply for backlight (+5.0V) |
|
|
20 |
LED-K(0V) |
Ground for backlight(0V) |
|
|
|
|||
|
Mechanical Data |
|||
|
Item |
Standard Value |
Unit |
|
|
Module Dimension |
122.0 x 44.0 |
mm |
|
|
Viewing Area |
99.0 x 24.0 |
mm |
|
|
Mounting Hole |
115.0 x 37.0 |
mm |
|
|
Dots Pitch |
0.51 x 0.57 |
mm |
|
|
Dots Size |
0.56 x 0.52 |
mm |
|
|
|
|||
|
Electrical Characteristics |
|||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
|
Input Voltage |
VDD |
5 |
V |
|
Recommended LCD Driving |
VDD-VO |
3.7 |
V |
