Графические ЖК Модудли 122x32 - Blaze Display Technology Co., Ltd.

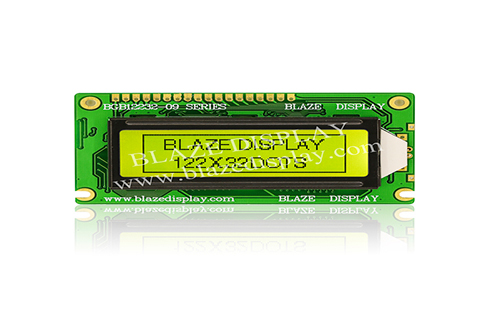

● Grahpic LCD 122 x 32 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● +3.3V / +5.0V power supply
● Viewing Direction: 6H / 12H
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T

Display Format	Model No.	Outline Dimension (mm)	Viewing Area (mm)	Active Area (mm)	Interface	IC Part No.
122X32	BGB12232-13	84.00 × 44.00 × 14.20	60.00 × 18.00	53.64 × 15. 64	SPI & Parallel	SBN1661G.
122X32	BGB12232-C01	93.50 × 45.00 × 17.30	60.00 × 18.00	48.76 × 14.68	SPI & Parallel	ST7920 or Eqv.
122X32	BGB12232-12	76.80 × 28.00 × 8.50	61.00 × 19.00	58.52 × 17.24	SPI & Parallel	AIP31020 or Eqv.
122X32	BGB12232-11A	65.40 × 30.00 × 6.00	60.60 × 20.00	57.32 × 16. 30	SPI & Parallel	SBN1661G.
122X32	BGB12232-10	84.00 × 44.00 × 12.80	60.00 × 18.00	48.76 × 14.68	Parallel	AIP31020 or Eqv.
122X32	BGB12232-09	84.00 × 44.00 × 12.80	60.00 × 18.00	48.76 × 14.68	Parallel	SBN1661G.
122X32	BGB12232-08	80.00 × 36.00 × 12.80	60.00 × 18.00	48.76 × 14.68	SPI & Parallel	SBN1661G.
122X32	BGB12232-07	80.80 × 29.10 × 12.80	59.98 × 18.00	48.76 × 14.68	SPI & Parallel	SBN1661G.
122X32	BGB12232-06	78.00 × 41.50 × 9.80	60.00 × 18.00	48.76 × 14. 68	SPI & Parallel	SBN1661G.
122X32	BGB12232-05	76.40 × 29.10 × 7.00	61.00 × 18.00	48.76 × 14. 68	SPI & Parallel	SBN1661G.
