Графический ЖК Индикатор BGB12232-01
Model No. BGB12232-01

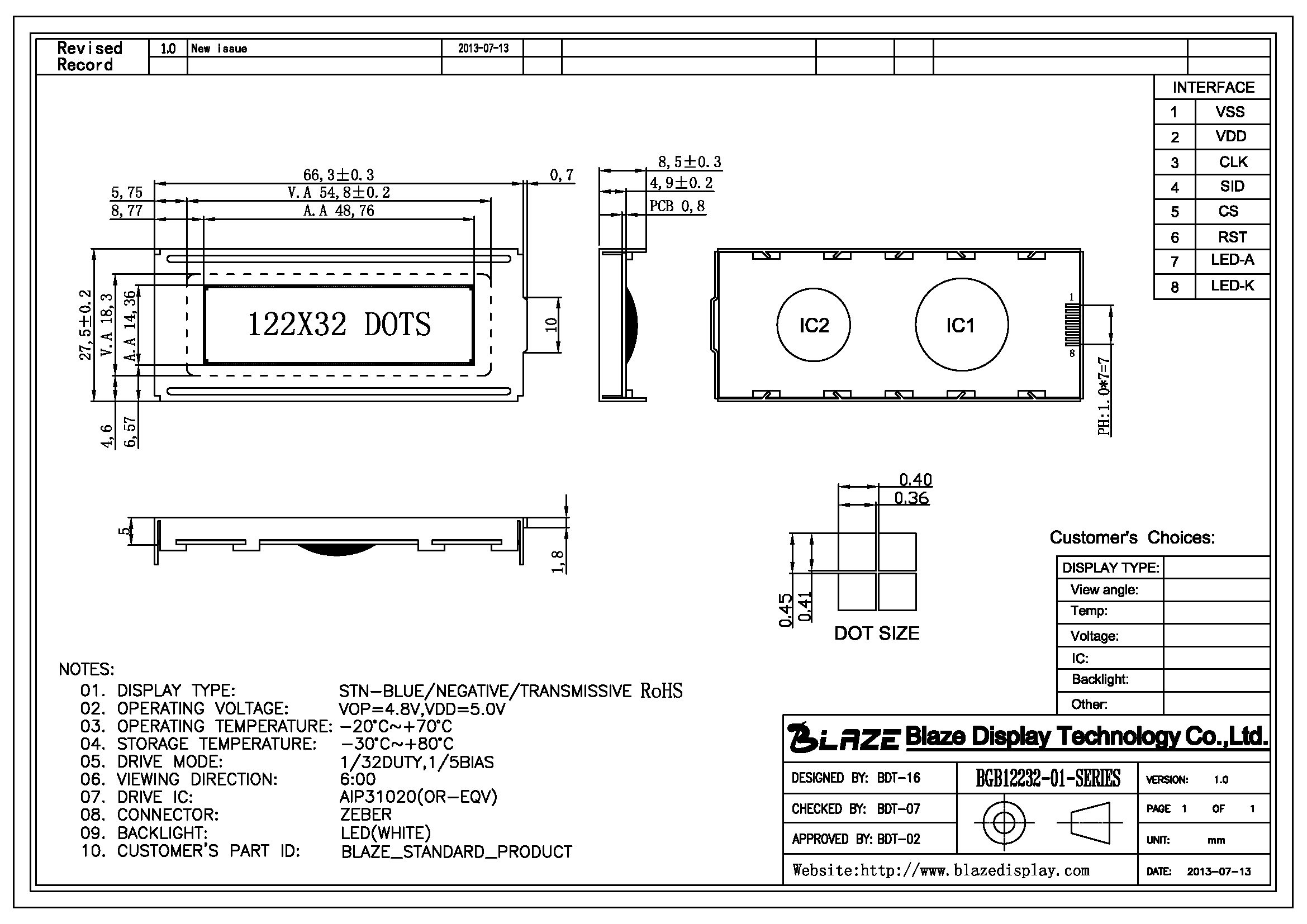

Outline size（mm）： 66.30 × 27.50 × 8.50
Viewing Area：54.80 × 18.30
Active Area： 48.76 × 14.36
Controller IC： AIP31020 or Eqv.
Interface： SPI & Parallel
Remarks： 1×8PIN
Backlight：LED
Part Number: BGB12232-01
● Character LCD 122 x 32 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (AIP31020 or Equivalent)
● +3.3V / +5.0V power supply
● 1/32 duty, 1/5bias
● Viewing Direction: 6H / 12H
● Interface: 6800 4/8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
Blaze Display is one of the best China Graphic LCD Display BGB12232-01 manufacturers and suppliers. We are always at your service.
|
Interface Pin Function |
||
|
Pin No. |
Symbol |
Description |
|
1 |
VSS |
Ground(0V) |
|
2 |
VDD |
Power supply for logic(+5.0V) |
|
3 |
CLK |
Serial data input |
|
4 |
SID |
Serial clock input |
|
5 |
CS |
Chip Select |
|
6 |
/RST |
reset |
|
7 |
LED-A |
Power supply for backlight |
|
8 |
LED-K |
Ground for backlight |
