Графический ЖК Индикатор BGB12232-03
Model No. BGB12232-03

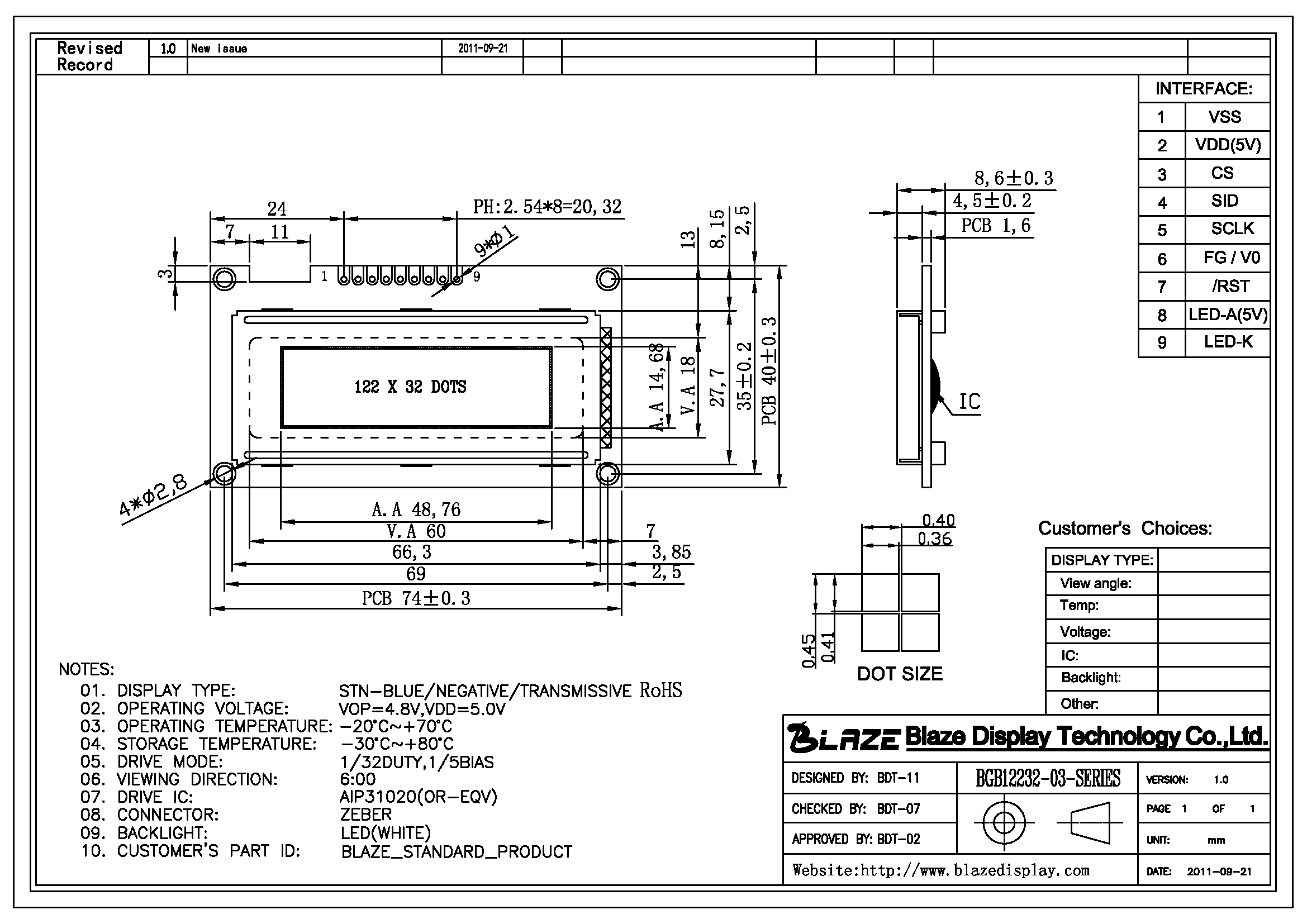

Outline size（mm）： 74.00 × 40.00 × 8.60
Viewing Area：60.00 × 18.00
Active Area： 48.76 × 14.68
Controller IC： AIP31020 or Eqv.
Interface： SPI & Parallel
Remarks： 1×9PIN
Backlight：LED
Part Number: BGB12232-03
● Character LCD 122 x 32 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (AIP31020 or Equivalent)
● +3.3V / +5.0V power supply
● 1/32 duty, 1/5bias
● Viewing Direction: 6H / 12H
● Interface: 6800 4/8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
Blaze Display is one of the best China graphic lcd display bgb12232-03 manufacturers and suppliers. We are always at your service.
|
Interface Pin Function |
||
|
Pin No. |
Symbol |
Description |
|
1 |
VSS |
Ground(0V) |
|
2 |
VDD(5V) |
Power supply for logic(+5.0V) |
|
3 |
CS |
Chip Select |
|
4 |
SID |
Serial clock input |
|
5 |
SCLK |
Serial data input |
|
6 |
FG / V0 |
Contrast Adjustment |
|
7 |
/RST |
reset |
|
8 |
LED-A |
Power supply for backlight |
|
9 |
LED-K |
Ground for backlight |
