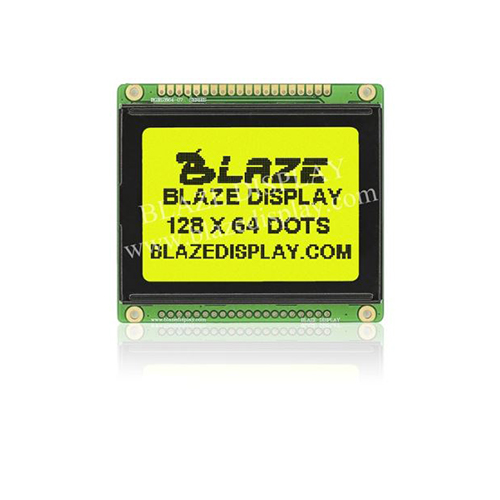

Графический ЖК Индикатор BGB12864-07
Model No. BGB12864-07
Outline size（mm）： 78.00 × 70.00 × 12.00
Viewing Area：72.00 × 40.00
Active Area： 62.00 × 44.00
Controller IC： AIP31108 or Eqv.
Interface： SPI & Parallel
Remarks： 1×20PIN
Backlight：LED
Part Number: BGB12864-07
● Character LCD 128 x 64 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Bulit-in controller (AIP31108 or Equivalent)
● +3.3V / +5.0V power supply
● 1/64 duty , 1/9bias
● Viewing Direction: 6H / 12H
● Interface: 6800 4/8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
Blaze Display is one of the best China graphic lcd display bgb12864-07 manufacturers and suppliers. We are always at your service.
