Графический ЖК Индикатор BGB12864-10
Model No. BGB12864-10
Part Number： BGB12864-10
Tech： COB
Outline size（mm）： 106.00 × 69.00 × 12.00
Viewing Area： 62.00 × 44.00
Active Area： 56.28 × 38.36
Controller IC： AIP31107 or Eqv
Interface： Parallel
BL： LED
Remarks： 2×10PIN
Part Number: BGB12864-10
Tech： COB
Outline size（mm）： 106.00 × 69.00 × 12.00
Viewing Area： 62.00 × 44.00
Active Area： 56.28 × 38.36
Controller IC： AIP31107 or Eqv
Interface： Parallel
BL： LED
Remarks： 2×10PIN
Blaze Display is one of the best China graphic lcd display bgb12864-10 manufacturers and suppliers. We are always at your service.
|
SPECIFICATIONS |
|||
|
Interface Pin Function |
|||
|
Pin No. |
Symbol |
Description |
|
|
1 |
CS1 |
Chip select signal |
|
|
2 |
CS2 |
Chip select signal |
|
|
3 |
VSS |
Ground(0V) |
|
|
4 |
VDD(5V) |
Power supply for logic |
|
|
5 |
V0 |
Contrast Adjustment |
|
|
6 |
RS |
Data/ Instruction select signal |
|
|
7 |
R/W |
Read/Write select signal |
|
|
8 |
E |
Enable signal |
|
|
9-16 |
DB0~DB7 |
Data bus line |
|
|
17 |
VOUT |
Negative voltage output |
|
|
18 |
RST |
Reset signal |
|
|
19 |
LED-A(5V) |
Power supply for backlight (+5.0V) |
|
|
20 |
LED-K |
Ground for backlight(0V) |
|
|
|
|||
|

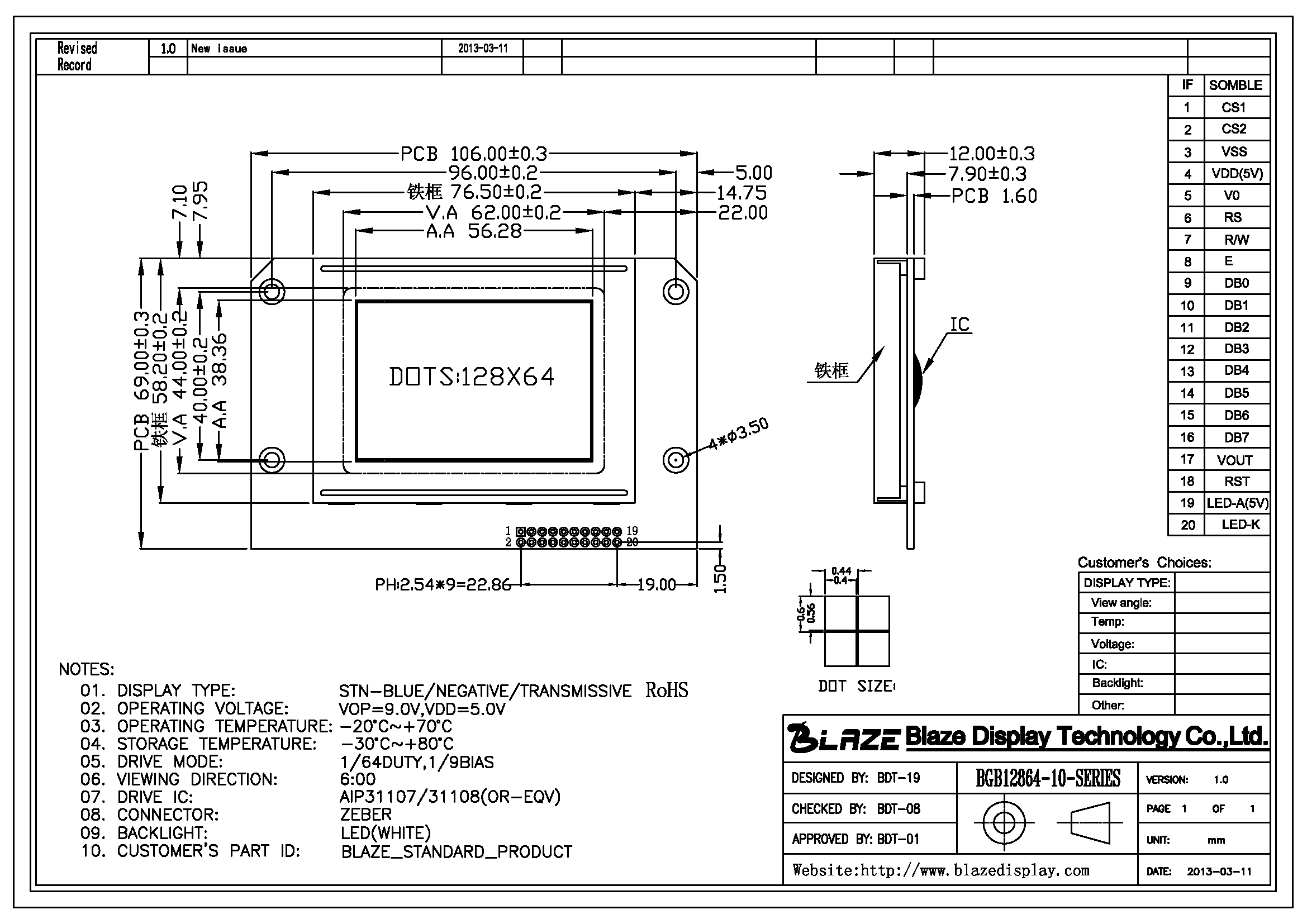

Mechanical Data |
|||
|
Item |
Standard Value |
Unit |
|
|
Module Dimension |
106.0 x 69.0 |
mm |
|
|
Viewing Area |
62.0 x 44.0 |
mm |
|
|
Mounting Hole |
96.0 x 40.0 |
mm |
|
|
Dots Pitch |
0.44 x 0.60 |
mm |
|
|
Dots Size |
0.40 x 0.56 |
mm |
|
|
|
|||
|
Electrical Characteristics |
|||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
|
Input Voltage |
VDD |
5 |
V |
|
Recommended LCD Driving
| |||
