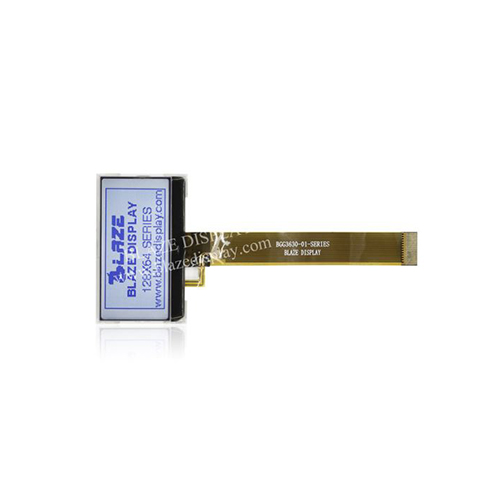

Графический ЖК Индикатор BGG3630-01
Model No. BGG3630-01
Outline size（mm）： 64.40 × 39.00 × 4.50
Viewing Area： 58.00 × 28.00
Active Area： 51.18 × 25.58
Controller IC： ST7567 or Eqv.
Interface： Parallel
Backlight：LED
Remarks： 1×28 PIN
Part No. ：BGG3630-01
● resolution 128×64 Dots
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (ST7066 or Equivalent)
● +3.3V power supply
● 1/64 Duty , 1/9 Bias
● Viewing Direction: 6H / 12H
● Interface: 6800 4/8-bit parallel, optional SPI / I2C (RW1063 IC)
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)
Blaze Display is one of the best China Graphic LCD Display BGG3630-01 manufacturers and suppliers. We are always at your service.
