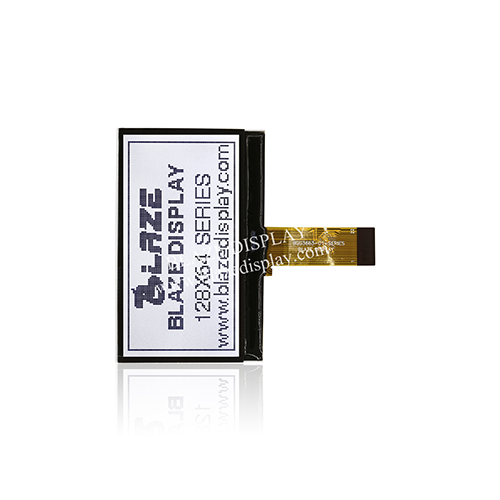

Графический ЖК Индикатор BGG3663-01
Model No. BGG3663-01
Outline size（mm）： 69.30 ×44.05 × 11.40
Viewing Area： 64.00 × 33.00
Active Area： 61.42 × 30.70
Controller IC： NT7538H or Eqv.
Interface： Parallel
Backlight：LED
Remarks： 1×22 PIN
Part No. ：BGG3663-01
● resolution 128×64 Dots
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (NT7538H or Equivalent)
● +3.3V / +5.0V power supply
● 1/64 Duty , 1/9 Bias
● Viewing Direction: 6H
● Interface: 6800 4/8-bit parallel, optional SPI / I2C (RW1063 IC)
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)
Blaze Display is one of the best China Graphic LCD Display BGG3663-01 manufacturers and suppliers. We are always at your service.
