BDT-T14410-01
Model No. BDT-T14410-01

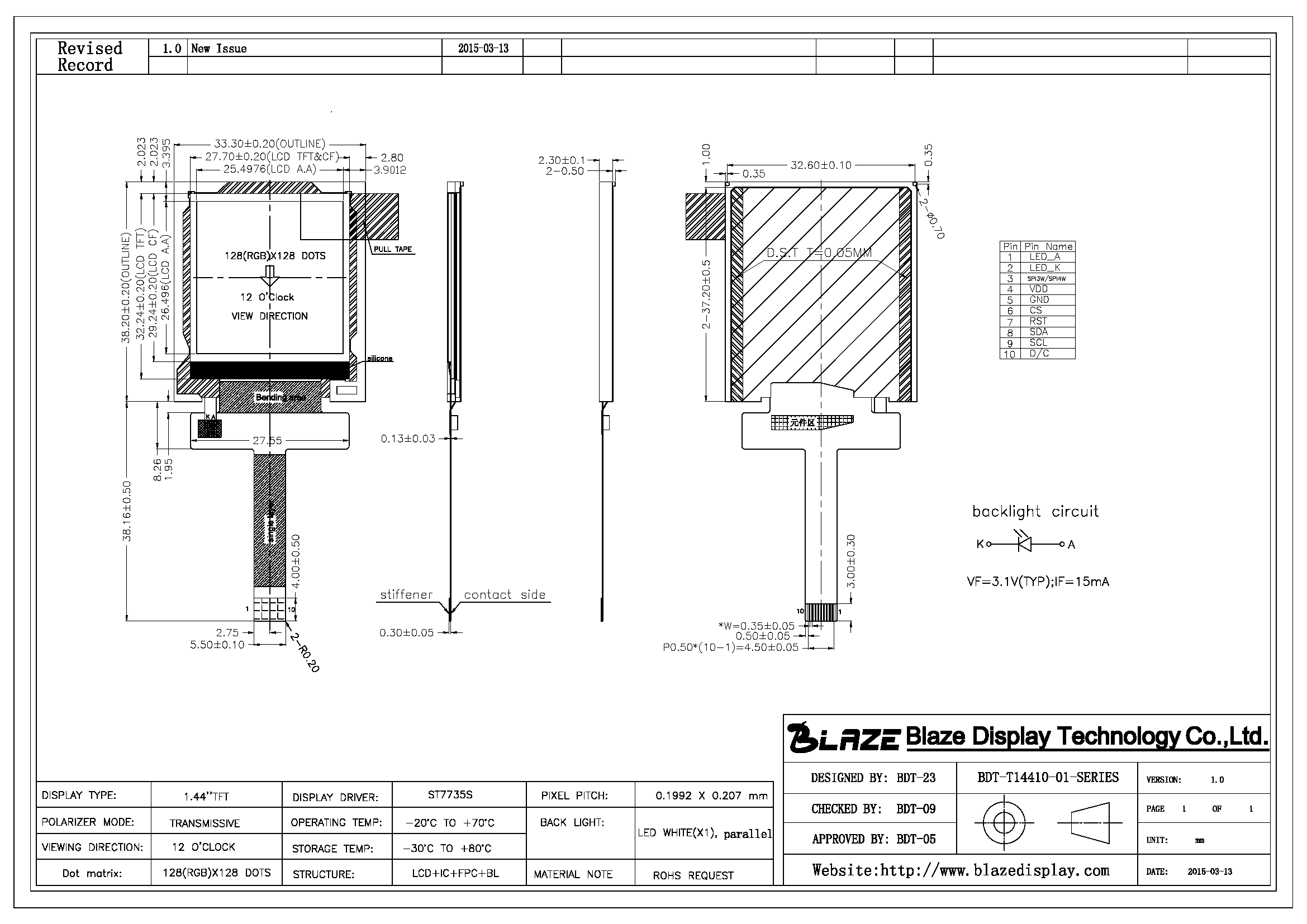

- Outline size（ mm）： 33.30 × 38.20 × 2.30
- LCD TFT：32.24 × 27.70
- Active Area： 25.4976 × 26.496
- Controller IC： ST7735S.
- Interface： SPI
- TP: Optional
- Backlight：LED
Part Number: BDT-T14410-01
● Display Format: 128 x 128
● Size: 1.44"
● View Direction:12H
● Interface: MCU
● Built-in Controller: ST7735S
● Control-Board: No
● Brightness(cd/m²): 200
● Frame Through Hole: No
● Touch Screen: Optional
|
Interface |
|||||||||||||
|
NO |
Symbol |
Function |
|||||||||||
|
1 |
LED-A |
Anode of LED backlight. |
|||||||||||
|
2 |
LED-K |
Cathode of LED backlight. |
|||||||||||
|
3 |
SPI3W/SPIW |
3wire SPI or 4 wire SPI select |
|||||||||||
|
4 |
VDD |
Power supply (TYP:2.8V). |
|||||||||||
|
5 |
GND |
Ground |
|||||||||||
|
6 |
CS |
Chip select signal. |
|||||||||||
|
7 |
RST |
System reset pin. |
|||||||||||
|
8 |
SDA |
Serial data input |
|||||||||||
|
9 |
SCL |
Serial clock input |
|||||||||||
|
10 |
D/C |
Register select |
|||||||||||
|
|
|||||||||||||
|
General Specifications |
|||||||||||||
|
Item |
Dimension |
Unit |
|||||||||||
|
Size |
1.44 |
inch |
|||||||||||
|
Dot Matrix |
128 × RGB × 128 (TFT) |
dots |
|||||||||||
|
Module dimension |
33.30(W) × 38.20(H) × 2.30(D) |
mm |
|||||||||||
|
Active area |
25.4976 × 26.496 |
mm |
|||||||||||
|
Dot pitch |
0.1992 × 0.207 |
mm |
|||||||||||
|
LCD type |
TFT, Normally White, Transmissive |
||||||||||||
|
View Direction |
12 o'clock |
||||||||||||
|
Gray Scale Inversion Direction |
--- |
||||||||||||
|
Backlight Type |
LED, Normally White |
||||||||||||
|
With /Without TP |
Without touch panel |
||||||||||||
|
Surface |
---- |
||||||||||||
|
|
|||||||||||||
|
Absolute Maximum Ratings |
|||||||||||||
|
Item |
Symbol |
Min |
Typ |
Max |
Unit |
||||||||
|
Operating Temperature |
TOP |
-20 |
－ |
+70 |
℃ |
||||||||
|
Storage Temperature |
TST |
-30 |
－ |
+80 |
℃ |
||||||||
|
|
|||||||||||||
|
Electrical Characteristics |
|||||||||||||
|
Item |
Symbol |
Condition |
Min |
Typ |
|||||||||
