Графический ЖК Индикатор BGB160128-02A
Model No. BGB160128-02A

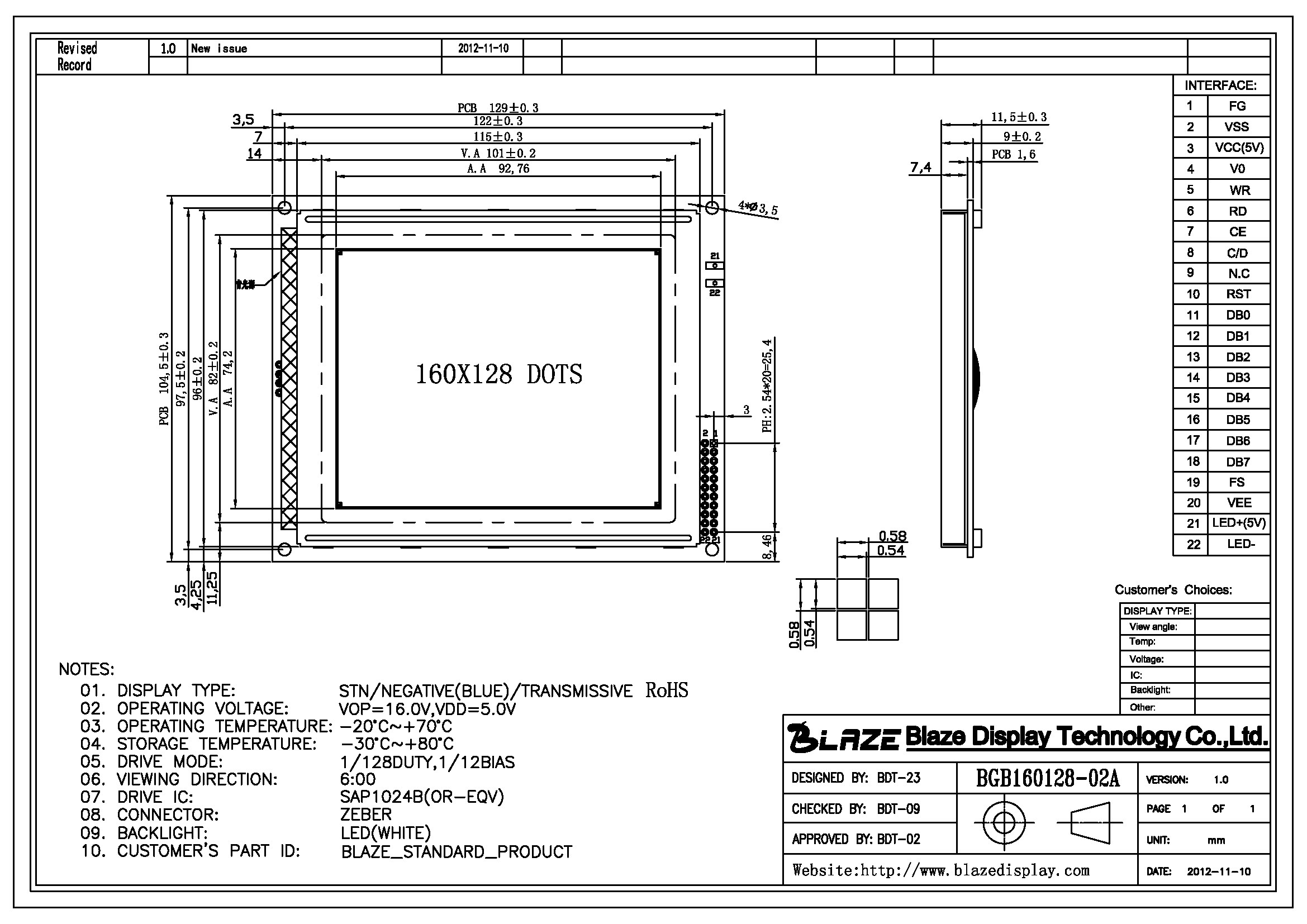

Outline size（mm）： 129.00 × 104.50 × 11.00
Viewing Area：101.00 × 82.00
Active Area： 92.76 × 74.20
Controller IC： SAP1024B or Eqv.
Interface： 8080 Parallel
Remarks： 2×11PIN
Backlight：LED
Part Number: BGB160128-02A
● Graphic LCD 160 x 128 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller ((SAP1024B or Equivalent)
● +3.3V / +5.0V power supply
● 1/128 duty, 1/12bias
● Viewing Direction: 6H / 12H
● Interface: 8080 8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
Blaze Display is one of the best China Graphic LCD Display BGB160128-02A manufacturers and suppliers. We are always at your service.
|
SPECIFICATIONS |
|||
|
Interface Pin Function |
|||
|
Pin No. |
Symbol |
Description |
|
|
1 |
FG |
Frame ground |
|
|
2 |
VSS |
Ground(0V) |
|
|
3 |
VCC(5V) |
Power supply for logic(+5.0V) |
|
|
4 |
V0 |
Contrast Adjustment |
|
|
5 |
WR |
Data write. Write data into LCD Controller |
|
|
6 |
RD |
Data read. Read data from LCD Controller |
|
|
7 |
CE |
Enable signal |
|
|
8 |
C/D |
Data/ Instruction select signal |
|
|
9 |
N.C |
No connection |
|
|
10 |
RST |
Controller reset signal, Active Low |
|
|
11~18 |
DB0~DB7 |
Data bus line |
|
|
19 |
FS |
Selection of font; H: 6 * 8 , L : 8 * 8 |
|
|
20 |
VEE |
Negative Voltage Output |
|
|
21 |
LED+(5V) |
Power supply for backlight (+5.0V) |
|
|
22 |
LED- |
Ground for backlight(0V) |
|
|
|
|||
|
Mechanical Data |
|||
|
Item |
Standard Value |
Unit |
|
|
Module Dimension |
129.0 x 104.5 |
mm |
|
|
Viewing Area |
101.0 x 82.0 |
mm |
|
|
Mounting Hole |
122.0 x97.5 |
mm |
|
|
Dots Pitch |
0.58 x 0.58 |
mm |
|
|
Dots Size |
0.54 x 0.54 |
mm |
|
|
|
|||
|
Electrical Characteristics |
|||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
|
Input Voltage |
VDD |
5 |
V |
|
Recommended LCD Driving |
VDD-VO |
