Графический ЖК Индикатор BGB16032-01
Model No. BGB16032-01

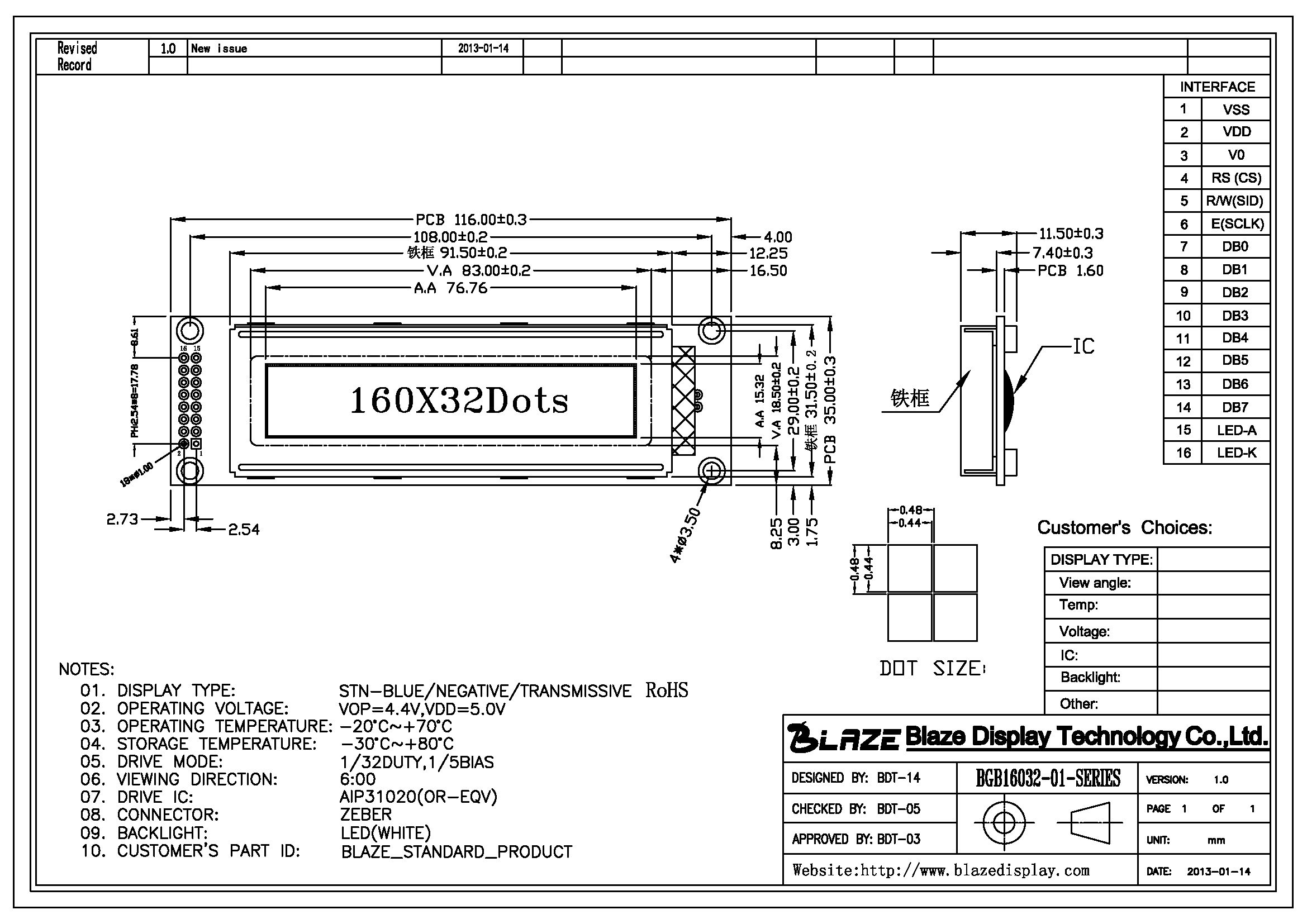

Outline size（mm）： 116.00 × 35.00 × 11.5
Viewing Area：83.00 × 18.50
Active Area： 76.76 × 15.32
Controller IC： AIP31020 or Eqv.
Interface： SPI & Parallel
Remarks： 2×8PIN
Backlight：LED
Part Number: BGB16032-01
● Graphic LCD 160 x 32 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (AIP31020 or Equivalent)
● +3.3V / +5.0V power supply
● 1/32 duty, 1/5bias
● Viewing Direction: 6H / 12H
● Interface: 6800 8-bit parallel or SPI
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
Blaze Display is one of the best China graphic lcd display bgb16032-01 manufacturers and suppliers. We are always at your service.
|
SPECIFICATIONS |
||
|
Interface Pin Function |
||
|
Pin No. |
Symbol |
Description |
|
1 |
VSS |
Ground(0V) |
|
2 |
VDD |
Power supply for logic |
|
3 |
V0 |
Contrast Adjustment |
|
4 |
RS(CS) |
Data/ Instruction select signal or chip select |
|
5 |
R/W(SID) |
Read/Write or Serial data input |
|
6 |
E(SCLK) |
Enable signal (Serial clock input) |
|
7~14 |
DB0~DB7 |
Data bus line33 |
|
15 |
LED-A |
Power supply for backlight |
|
16 |
LED-K |
Ground for backlight |
