Графический ЖК Индикатор BGB16032-03A
Model No. BGB16032-03A

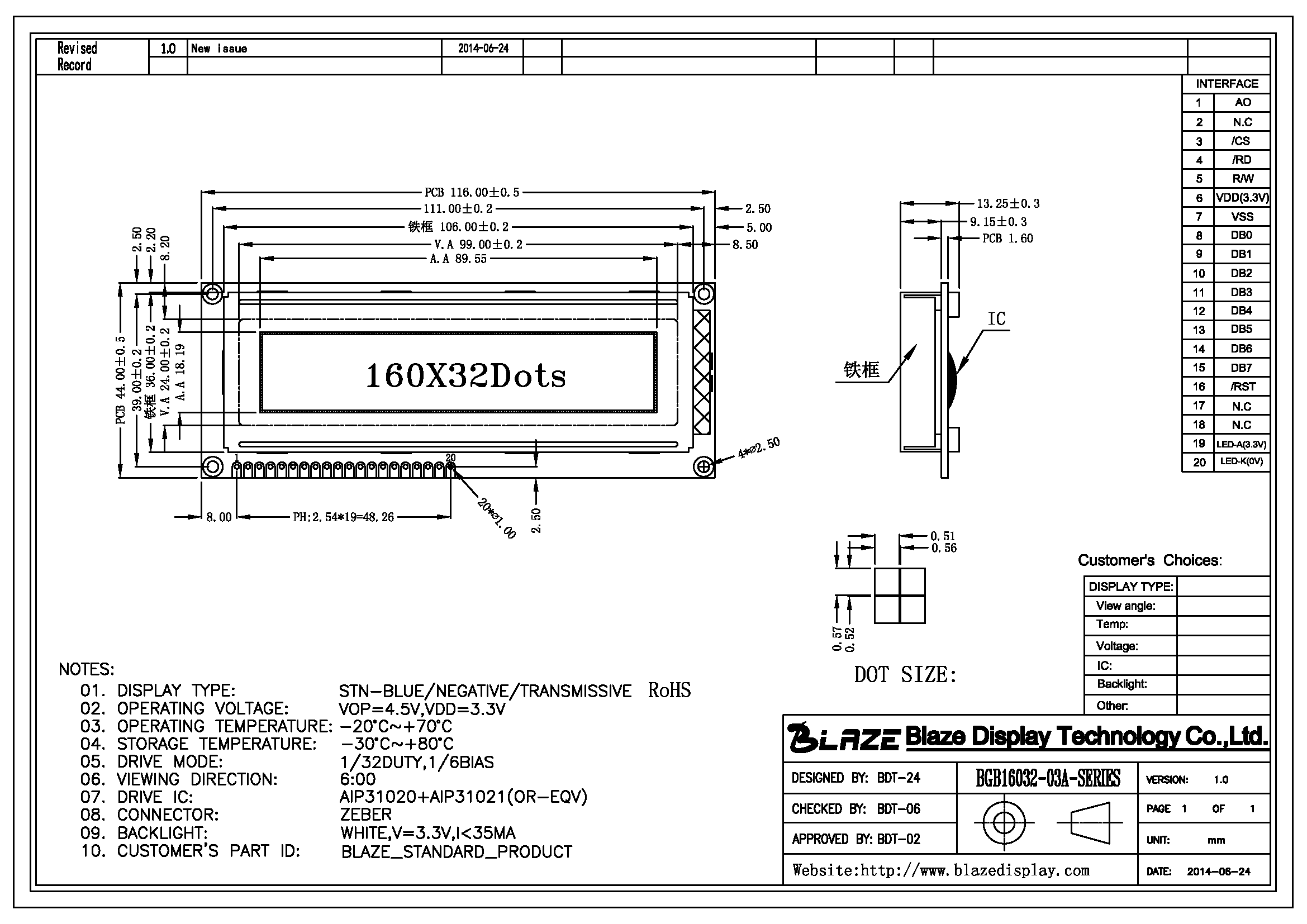

Outline size（mm）： 116.00 × 44.00 × 13.25
Viewing Area：99.00 × 24.00
Active Area： 89.55 × 18.19
Controller IC： AIP31020 or Eqv.
Interface： SPI & Parallel
Remarks： 1×20PIN
Backlight：LED
Part Number: BGB16032-03A
● Graphic LCD 160 x 32 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (AIP31020 or Equivalent)
● +3.3V / +5.0V power supply
● 1/32 duty, 1/5bias
● Viewing Direction: 6H / 12H
● Interface: 6800 8-bit parallel or SPI
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
Blaze Display is one of the best China Graphic LCD Display BGB16032-03A manufacturers and suppliers. We are always at your service.
|
SPECIFICATIONS |
||
|
Interface Pin Function |
||
|
Pin No. |
Symbol |
Description |
|
1 |
A0 |
Data/ Instruction select signal |
|
2 |
N.C |
No connection |
|
3 |
/CS |
Chip select signal |
|
4 |
/RD |
Read signa |
|
5 |
R/W |
Read/Write control |
|
6 |
VDD(3.3V) |
Power supply for logic |
|
7 |
VSS |
Ground(0V) |
|
14~15 |
DB0~DB7 |
Data bus line |
|
16 |
/RST |
System reset signal |
|
17 |
N.C |
No connection |
|
18 |
N.C |
No connection |
|
19 |
LED-A(3.3V) |
Power supply for backlight |
|
20 |
LED-K(0V) |
Ground for backlight |
