● Character LCD 8x2 (5 x 8 dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● +3.3V / +5.0V power supply
● Viewing Direction: 6H / 12H
● Interface: 6800 4/8-bit parallel, optional SPI / I2C (RW1063 IC)
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)

Display Format	Model No.	Outline Dimension (mm)	Viewing Area (mm)	Active Area (mm)	Interface	IC Part No.
16x1	BCB1601-05	122.00 × 33.00 × 13.00	99 .00× 13.00	94.86 × 9.66	Parallel	ST7066U or Eqv.
16x1	BCB1601-04	80.00 × 36.00 × 9.00	65.00 × 14.00	59.46 × 5.96	Parallel	AIP31066 or Eqv.
16x1	BCB1601-03B	80.00 × 36.00 × 11.00	64.50 × 14.50	59.46 × 5.96	Parallel	ST7066U or Eqv.
16x1	BCB1601-03A	80.00 × 36.00 × 11.80	64.30 × 13.90	59.46 × 5.96	Parallel	ST7066U or Eqv.
16x1	BCB1601-02	80.00 × 36.00 × 13.50	64.50 × 14.50	59.46 × 5.96	Parallel	ST7066U or Eqv.

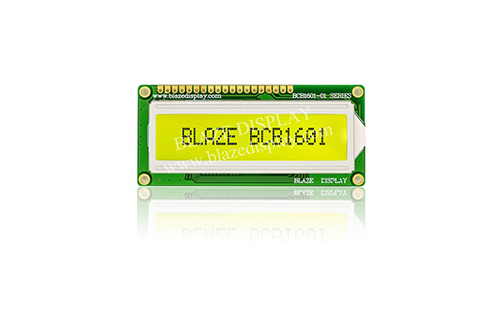

16x1	BCB1601-01	80.00 × 36.00 × 13.50	66.00 × 16.00	59.62 × 6.56	Parallel	ST7066U or Eqv.
16x1	BCB1601-03C	80.00 × 36.00 × 11.00	64.30 × 13.90	59.46 × 5.96	Parallel	ST7066U or Eqv
