Символьный ЖК Индикатор BCB1602-03D
Model No. BCB1602-03D
Outline size（mm）： 80.00 × 36.00 × 11.00
Viewing Area： 64.50 × 14.50
Active Area： 55.70 × 11.00
Controller IC： ST7066U or Eqv.
Interface： Parallel
Backlight：LED
Remarks： 2×7PIN
Part No. ：BCB1602-03D

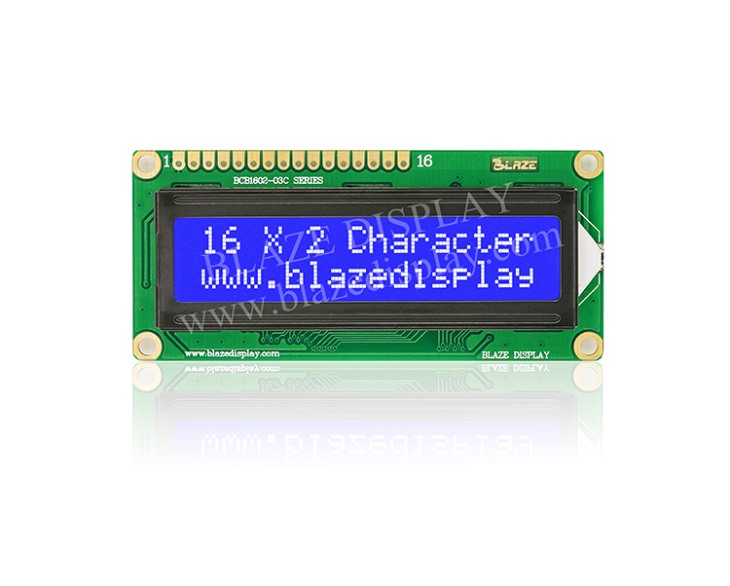

● Character LCD 16x2 (5 x 8 dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (ST7066 or Equivalent)
● +3.3V / +5.0V power supply
● 1/16 Duty , 1/5 Bias
● Viewing Direction: 6H / 12H
● Interface: 6800 4/8-bit parallel, optional SPI / I2C (RW1063 IC)
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)
Blaze Display is one of the best China Character LCD Display BCB1602-03D manufacturers and suppliers. We are always at your service.
|
SPECIFICATIONS |
|
|||||||||||||||||
|
Interface Pin Function |
|
|||||||||||||||||
|
Pin No. |
Symbol |
Description |
|
|||||||||||||||
|
1(J3)、16(J3)、3(CON4)、4(CON4) |
N.C |
No connection |
|
|||||||||||||||
|
2(J3) |
RS |
Data/ Instruction select signal |
|
|||||||||||||||
|
3(J3) |
R/W |
Read/Write select signal |
|
|||||||||||||||
|
4(J3) |
EN |
Enable signal |
|
|||||||||||||||
|
5~12(J3) |
DB7~DB0 |
Data bus line |
|
|||||||||||||||
|
13(J3) |
K1 |
KEY pin for SW1 |
|
|||||||||||||||
|
14(J3) |
K2 |
KEY pin for SW2 |
|
|||||||||||||||
|
15(J3) |
K3 |
KEY pin for SW3 |
|
|||||||||||||||
|
1(CON4) |
R+(5.0) |
Power supply for logic |
|
|||||||||||||||
|
2(CON4) |
R0(VSS) |
Ground |
|
|||||||||||||||
|
|
|
|||||||||||||||||
|

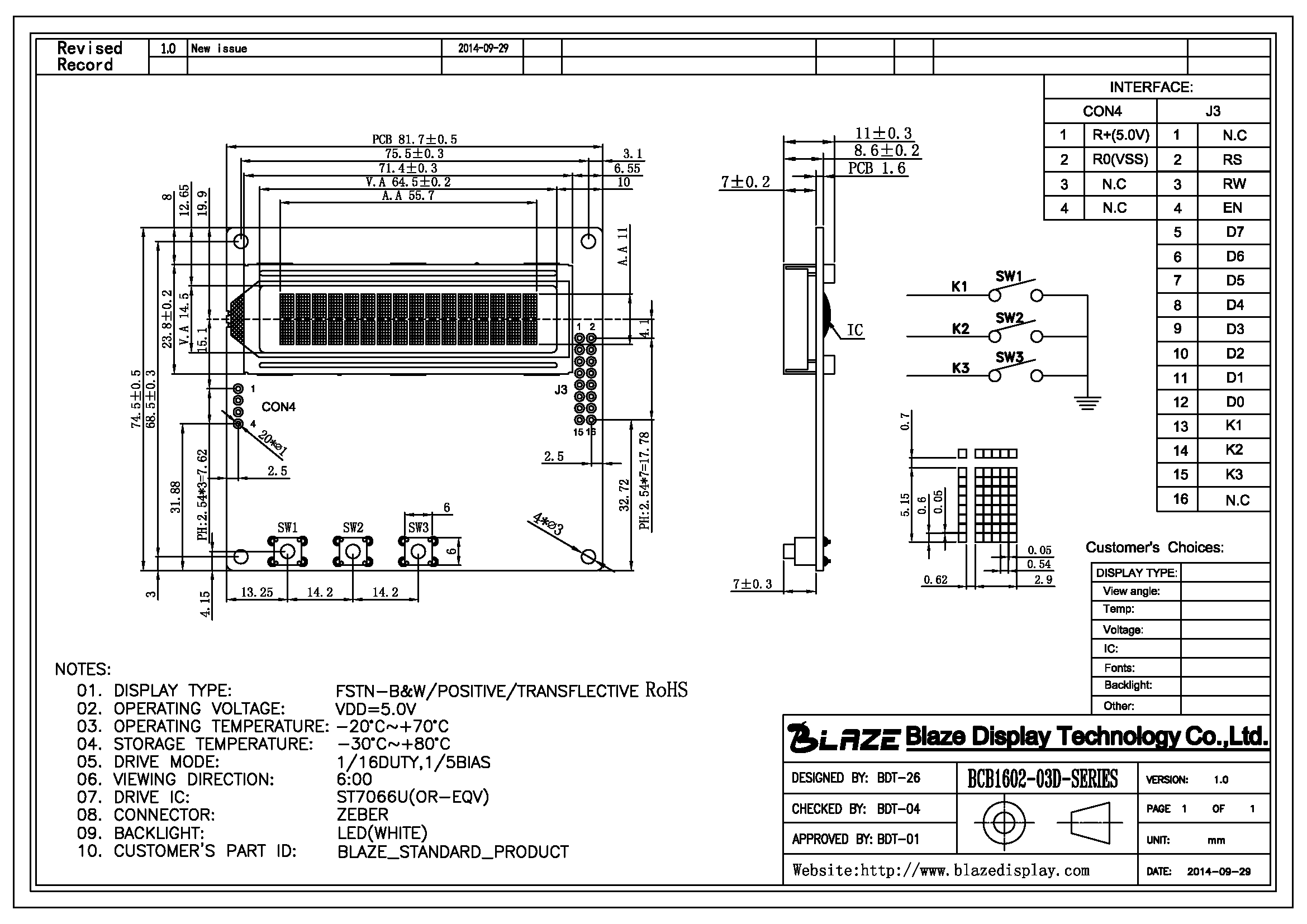

Mechanical Data |
|
|||||||||||||||||
|
Item |
Standard Value |
Unit |
|
|||||||||||||||
|
Module Dimension |
81.7 x 74.5 |
mm |
|
|||||||||||||||
|
Viewing Area |
64.5 x 14.5 |
mm |
|
|||||||||||||||
|
Mounting Hole |
75.5 x 68.5 |
mm |
|
|||||||||||||||
|
Character Size |
2.90 x 5.15 |
mm |
|
|||||||||||||||
|
|
|
|||||||||||||||||
|
Electrical Characteristics |
|
|||||||||||||||||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
|
||||||||||||||
|
Input Voltage |
VDD |
5 |
V |
|
||||||||||||||
|
Recommended LCD Driving |
VDD-VO |
3.7 |
V |
|
||||||||||||||
|
|
|
|||||||||||||||||
|
Display Character Address Code |
|
|||||||||||||||||
|
Display Position |
1 |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
16 |
||
|
DD RAM Address |
00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
