Графический ЖК Индикатор BGB19264-07B
Model No. BGB19264-07B
Outline size（mm）： 120.00 × 62.00 × 12.50
Viewing Area：104.00 × 39.00
Active Area： 97.50 × 32.47
Controller IC： AIP31108 or Eqv.
Interface： SPI & Parallel
Remarks： 1×21PIN
Backlight：LED
Part Number: BGB19264-07B
● Graphic LCD 192 x 64 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (AIP31108 or Equivalent)
● +3.3V / +5.0V power supply
● 1/64 duty, 1/9bias
● Viewing Direction: 6H / 12H
● Interface: 6800 8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
Blaze Display is one of the best China Graphic LCD Display BGB19264-07B manufacturers and suppliers. We are always at your service.
|
SPECIFICATIONS |
|||
|
Interface Pin Function |
|||
|
Pin No. |
Symbol |
Description |
|
|
1 |
VSS |
Ground(0V) |
|
|
2 |
VDD(5V) |
Power supply for logic |
|
|
3 |
V0 |
Contrast Adjustment |
|
|
4 |
VEE |
Negative voltage output |
|
|
5 |
RS |
Data/ Instruction select signal |
|
|
6 |
R/W |
Read/Write select signal |
|
|
7 |
E |
Enable signal |
|
|
8~15 |
DB0~DB7 |
Data bus line |
|
|
16 |
/CS1 |
Chip select signal |
|
|
17 |
/CS2 |
Chip select signal |
|
|
18 |
/CS3 |
Chip select signal |
|
|
19 |
RST |
Reset signal |
|
|
20 |
LED-A(3.3~3.7V) |
Power supply for backlight (+3.3~3.7V) |
|
|
21 |
LED-K(0V) |
Backlight ground |
|
|
|
|||
|

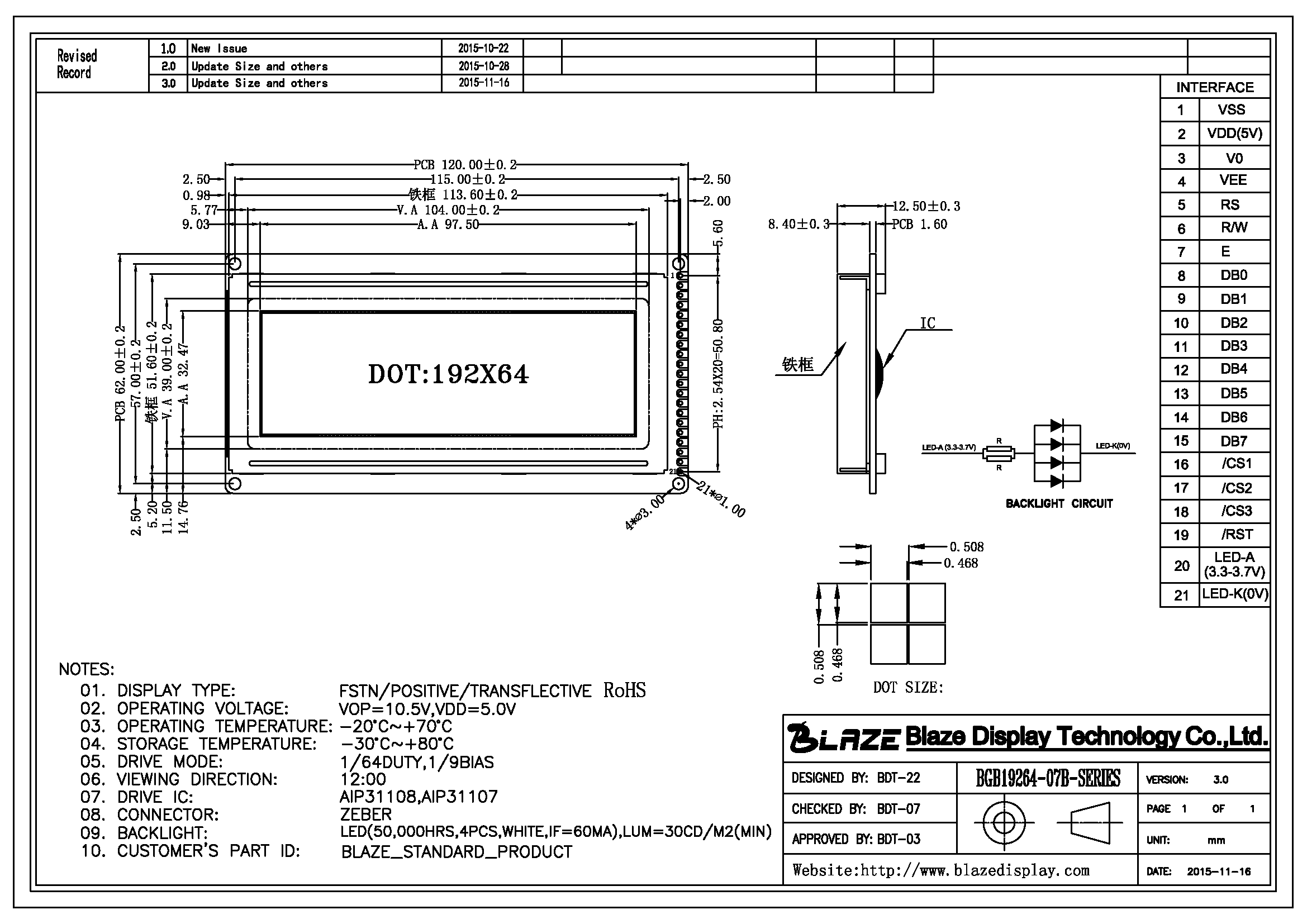

Mechanical Data |
|||
|
Item |
Standard Value |
Unit |
|
|
Module Dimension |
120 .0 x 62.0 |
mm |
|
|
Viewing Area |
104.0 x 39.0 |
mm |
|
|
Mounting Hole |
115.0 x 57.0 |
mm |
|
|
Dots Pitch |
0.508 x 0.508 |
mm |
|
|
Dots Size |
0.468 x 0.468 |
mm |
|
|
|
|||
|
Electrical Characteristics |
|||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
|
Input Voltage |
VDD |
5 |
V |
|
Recommended LCD Driving |
VDD-VO |
8.7 |
V |
