BDT-T2014-01
Model No. BDT-T2014-01

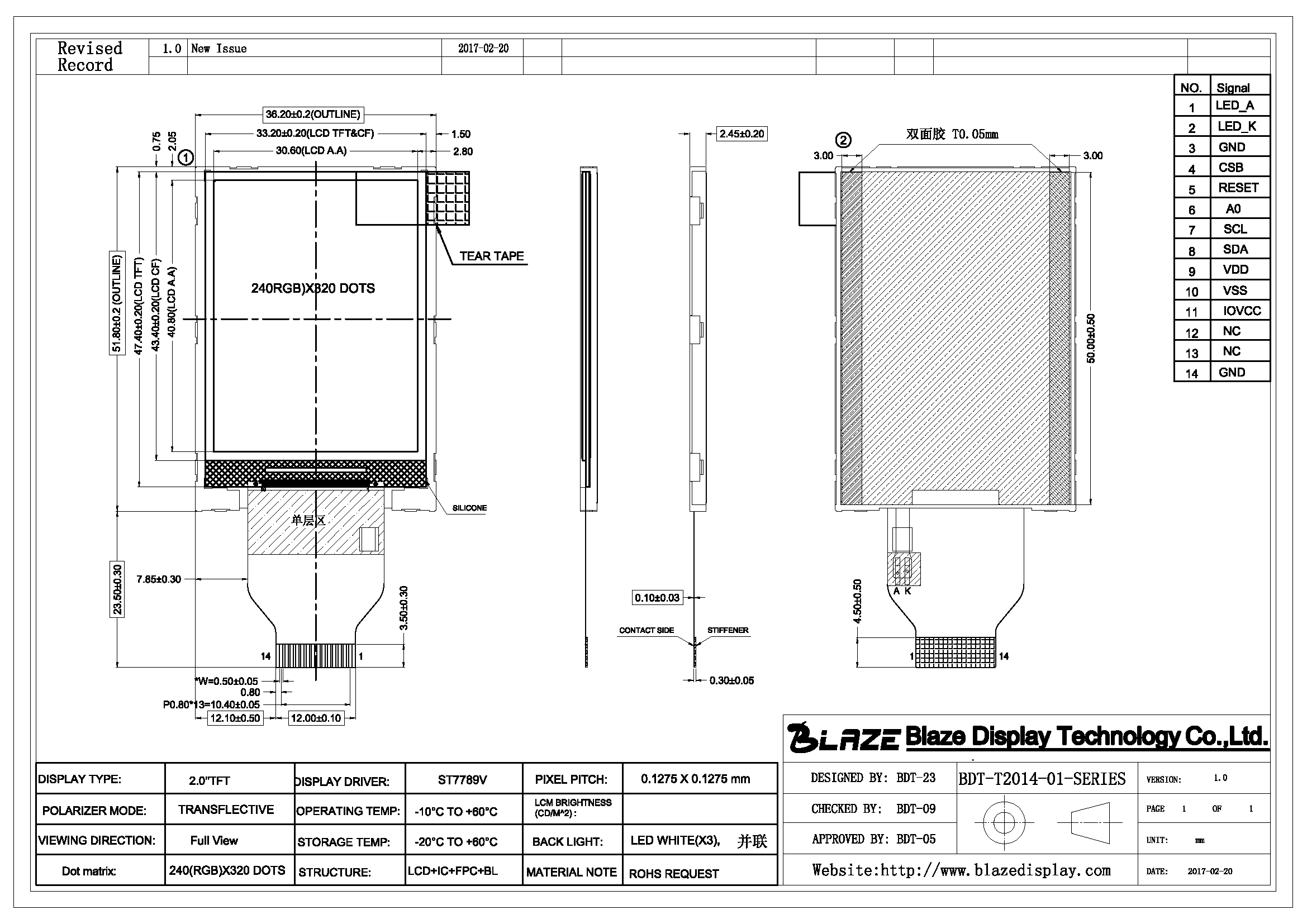

Outline size（mm）： 36.20 × 51.80 × 2.45
LCD TFT：33.20 × 47.40
Active Area： 30.60× 40.80
Controller IC： ST7789V.
Interface： SPI
TP: Optional
Backlight：LED
Part Number: BDT-T2014-01
● Display Format: 240 x 320
● Size: 2.0"
● View Direction: FULL VIEW
● Interface: MCU
● Built-in Controller: ST7789V
● Control-Board: No
● Brightness(cd/m²): 200
● Frame Through Hole: No
● Touch Screen: Optional
|
Interface |
|||||||||||||
|
NO |
Symbol |
Function |
|||||||||||
|
1 |
LED-A |
Analog power supply. |
|||||||||||
|
2 |
LED-K |
Cathode pin of backlight |
|||||||||||
|
3 |
GND |
Ground system |
|||||||||||
|
4 |
CSB |
Chip select pin |
|||||||||||
|
5 |
RESET |
Reset pin |
|||||||||||
|
6 |
A0 |
Command and Data select pin |
|||||||||||
|
7 |
SCL |
Serial lock signal |
|||||||||||
|
8 |
SDA |
Serial data signal |
|||||||||||
|
9 |
VDD |
Power supply |
|||||||||||
|
10 |
VSS |
Ground system |
|||||||||||
|
11 |
IOVCC |
Power supply |
|||||||||||
|
12 |
NC |
NC |
|||||||||||
|
13 |
NC |
NC |
|||||||||||
|
14 |
GND |
Ground system |
|||||||||||
|
|
|||||||||||||
|
General Specifications |
|||||||||||||
|
Item |
Dimension |
Unit |
|||||||||||
|
Size |
2.0 |
inch |
|||||||||||
|
Dot Matrix |
240 × RGB × 320 (TFT) |
dots |
|||||||||||
|
Module dimension |
36.20(W) × 51.80(H) × 2.45(D) |
mm |
|||||||||||
|
Active area |
30.60 × 40.80 |
mm |
|||||||||||
|
Dot pitch |
0.1275 × 0.1275 |
mm |
|||||||||||
|
LCD type |
TFT, Normally White, Transmissive |
||||||||||||
|
View Direction |
FULL VIEW |
||||||||||||
|
Gray Scale Inversion Direction |
--- |
||||||||||||
|
Backlight Type |
LED, Normally White |
||||||||||||
|
With /Without TP |
Without touch panel |
||||||||||||
|
Surface |
---- |
||||||||||||
|
|
|||||||||||||
|
Absolute Maximum Ratings |
|||||||||||||
|
Item |
Symbol |
Min |
Typ |
Max< |
|||||||||
