BDT-T2030-01
Model No. BDT-T2030-01

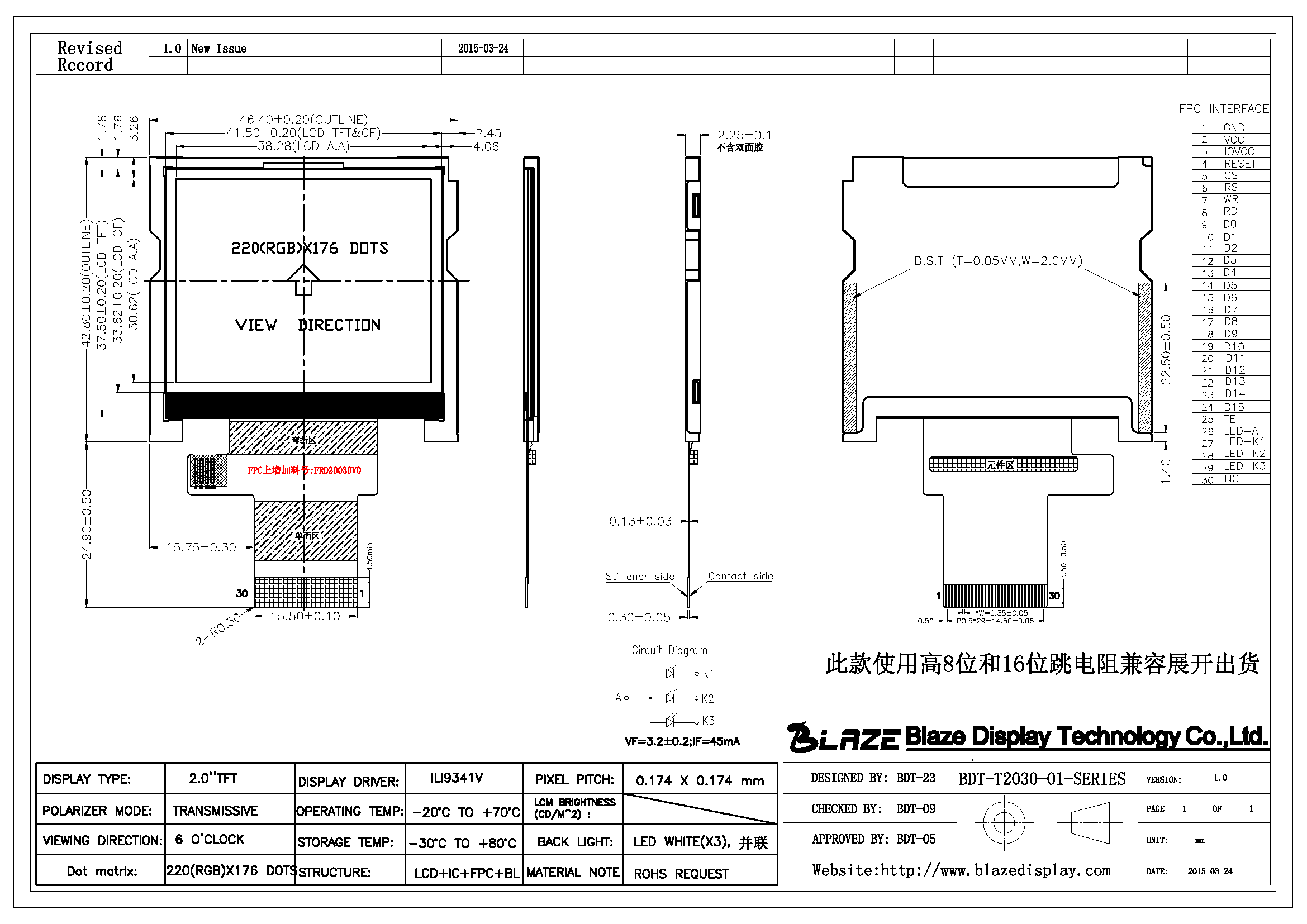

Outline size（mm）： 42.80 × 46.40 × 2.25
LCD TFT：37.50 × 41.50
Active Area： 30.62 × 38.28
Controller IC： ILI9341V.
Interface： 16-bit Parallel
TP: Optional
Backlight：LED
Part Number: BDT-T2030-01
● Display Format: 220 x 176
● Size: 2.0"
● View Direction: 6H
● Interface: MCU
● Built-in Controller: ILI9341V
● Control-Board: No
● Brightness(cd/m²): 200
● Frame Through Hole: No
● Touch Screen: Optional
|
Interface |
|||||||||||||
|
NO |
Symbol |
Function |
|||||||||||
|
1 |
GND |
Ground |
|||||||||||
|
2 |
VCC |
Analog power supply |
|||||||||||
|
3 |
IOVCC |
Digital IO Pad power supply |
|||||||||||
|
4 |
/RESET |
Reset pin. |
|||||||||||
|
5 |
/CS |
Chip select pin |
|||||||||||
|
6 |
RS |
Command and Data select pin |
|||||||||||
|
7 |
WR |
Write enable pin |
|||||||||||
|
8 |
RD |
Read enable pin |
|||||||||||
|
9-24 |
DB0-DB15 |
Data Bus |
|||||||||||
|
25 |
TE |
TE |
|||||||||||
|
26 |
RD |
Anode pin of backlight |
|||||||||||
|
27-29 |
K1-3 |
Cathode pin of backlight |
|||||||||||
|
30 |
NC |
NC |
|||||||||||
|
|
|||||||||||||
|
General Specifications |
|||||||||||||
|
Item |
Dimension |
Unit |
|||||||||||
|
Size |
2.0 |
inch |
|||||||||||
|
Dot Matrix |
220 × RGB × 176 (TFT) |
dots |
|||||||||||
|
Module dimension |
42.80(W) × 46.40(H) × 2.25(D) |
mm |
|||||||||||
|
Active area |
30.62 × 38.28 |
mm |
|||||||||||
|
Dot pitch |
0.219 × 0.219 |
mm |
|||||||||||
|
LCD type |
TFT, Normally White, Transmissive |
||||||||||||
|
View Direction |
6 o'clock |
||||||||||||
|
Gray Scale Inversion Direction |
--- |
||||||||||||
|
Backlight Type |
LED, Normally White |
||||||||||||
|
With /Without TP |
Without touch panel |
||||||||||||
|
Surface |
---- |
||||||||||||
|
|
|||||||||||||
|
Absolute Maximum Ratings |
|||||||||||||
|
Item |
Symbol |
Min |
Typ |
Max |
Unit |
||||||||
|
Operating Temperature |
TOP |
-20 |
－ |
+70 |
℃ |
||||||||
