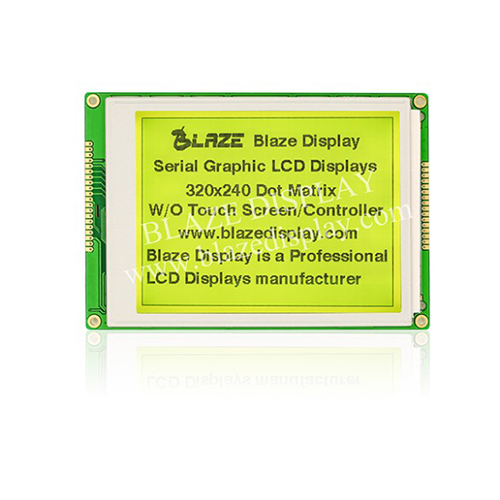

Графический ЖК Индикатор BGB320240-06
Model No. BGB320240-06
Outline size（mm）：160.00 × 109.00 × 11.00
Viewing Area：122.00 × 92.00
Active Area： 115.17 × 86.37
Controller IC： RA8835 or Eqv.
Interface： 6800/8080 8-bit Parallel
Remarks： 1×20/1x16/1x24PIN
Backlight：LED
Part Number: BGB320240-06
● Graphic LCD 320 x 240 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller ((RA8835 or Equivalent)
● +3.3V / +5.0V power supply
● 1/240 duty , 1/17bias
● Viewing Direction: 6H / 12H
● Interface: 6800/8080 8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
Blaze Display is one of the best China Graphic LCD Display BGB320240-06 manufacturers and suppliers. We are always at your service.
|
SPECIFICATIONS |
|||
|
Interface Pin Function(J1) |
|||
|
Pin No. |
Symbol |
Description |
|
|
1 |
VSS |
Ground(0V) |
|
|
2 |
VDD |
Power supply for logic(+5.0V) |
|
|
3 |
V0 |
Contrast Adjustment |
|
|
4 |
/WR |
Data write. Write data into LCD Controller |
|
|
5 |
/RD |
Data read. Read data from LCD Controller |
|
|
6 |
/CS |
Chip select input pins |
|
|
7 |
A0 |
Data/ Instruction select signal |
|
|
8 |
/RES |
Controller reset signal, Active Low |
|
|
9-16 |
DB0~DB7 |
Data bus line |
|
|
17 |
LEDA |
Power supply for backlight (+5.0V) |
|
|
18 |
VEE |
Negative Voltage Output |
|
|
19 |
LED-A |
Power supply for backlight (+5.0V) |
|
|
20 |
LED-K |
Ground for backlight(0V) |
|
|
|
|
|
|
|
Interface Pin Function(J2/J3) |
|||
|
Pin No. |
Symbol |
Description |
|
|
1-4 |
D0-D3 |
Data bus line |
|
|
5 |
DISP |
Display on/off control: H: ON, L: OFF |
|
|
6 |
FLM |
Scan start-up signal |
|
|
7 |
M |
Frame reverse signal(alternate signal) |
|
|
8 |
LP |
Data latch pulse |
|
|
9 |
CP |
Data shift pulse |
|
|
10 |
VDD |
Power supply for logic(+5.0V |
|
|
11 |
VSS |
Ground(0V |
|
|
12 |
VOUT |
Negative voltage output |
|
|
13 |
V0 |
Contrast Adjustment |
|
|
14 |
FG |
Frame ground |
|
|
15 |
LED-A |
Power supply for backlight (+5.0V) |
|
|
16 |
LED-K |
Ground for backlight(0V) |
|
|
|
|
|
|
|

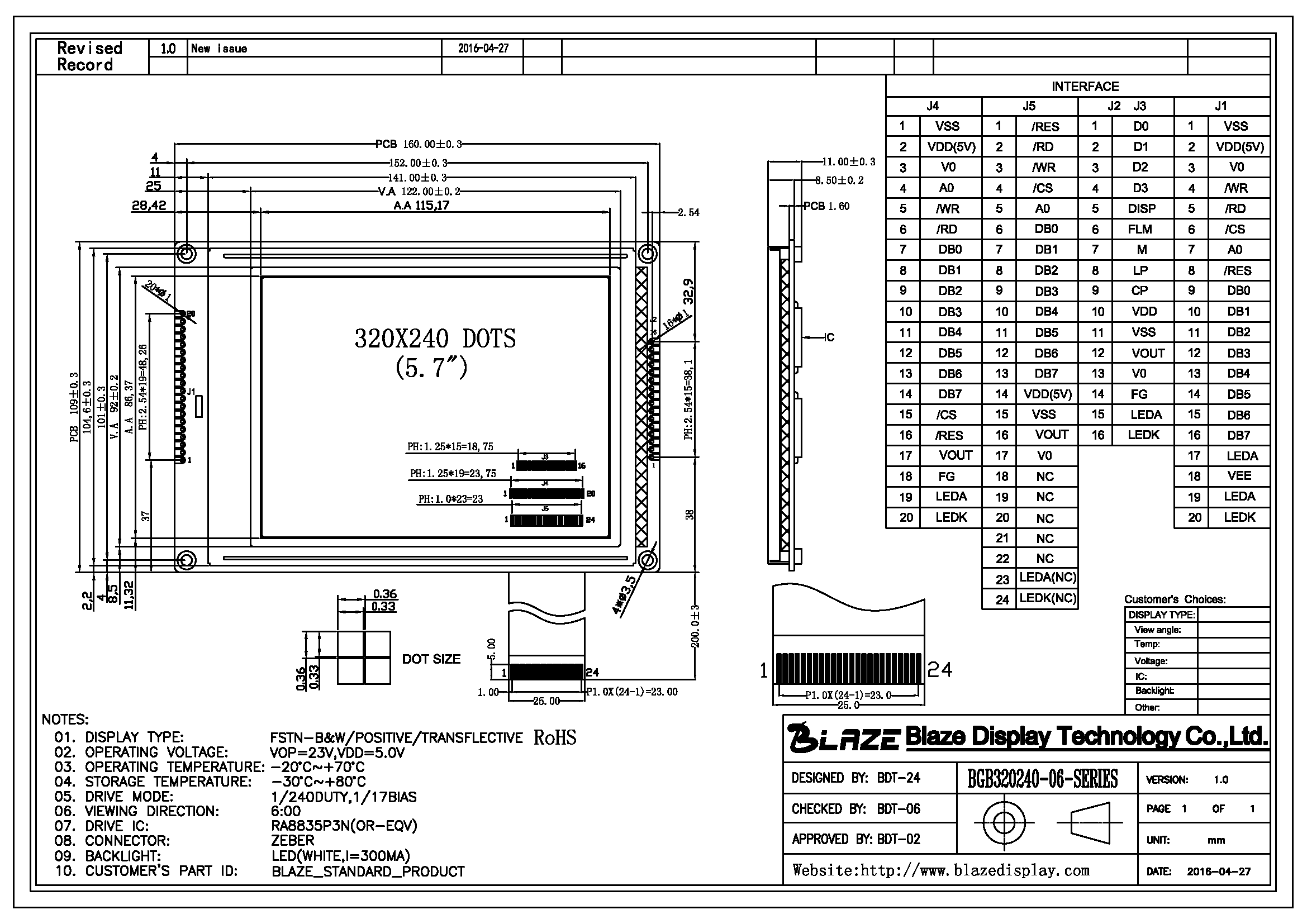

Mechanical Data |
|||
|
Item |
Standard Value |
Unit |
|
