Графический ЖК Индикатор BGB320240-06B
Model No. BGB320240-06B
Outline size（mm）：160.00 × 109.00 × 11.00
Viewing Area：122.00 × 92.00
Active Area： 115.17 × 86.37
Controller IC：No Controller.
Interface：4-bit X-driver data without controller interface
Remarks： 1x16PIN
Backlight：LED
Part Number: BGB320240-06B
● Graphic LCD 320 x 240 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Without controller
● +3.3V / +5.0V power supply
● 1/240 duty , 1/17bias
● Viewing Direction: 6H / 12H
● Interface: 4-bit X-driver data without controller interface
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
Blaze Display is one of the best China Graphic LCD Display BGB320240-06B manufacturers and suppliers. We are always at your service.
|
SPECIFICATIONS |
|||
|
Interface Pin Function(J2/J3) |
|||
|
Pin No. |
Symbol |
Description |
|
|
1-4 |
D0-D3 |
Data bus line |
|
|
5 |
DISP |
Display on/off control: H: ON, L: OFF |
|
|
6 |
FLM |
Scan start-up signal |
|
|
7 |
M |
Frame reverse signal(alternate signal) |
|
|
8 |
LP |
Data latch pulse |
|
|
9 |
CP |
Data shift pulse |
|
|
10 |
VDD |
Power supply for logic(+5.0V |
|
|
11 |
VSS |
Ground(0V |
|
|
12 |
VOUT |
Negative voltage output |
|
|
13 |
V0 |
Contrast Adjustment |
|
|
14 |
FG |
Frame ground |
|
|
15 |
LED-A |
Power supply for backlight (+5.0V) |
|
|
16 |
LED-K |
Ground for backlight(0V) |
|
|
|
|
|
|
|

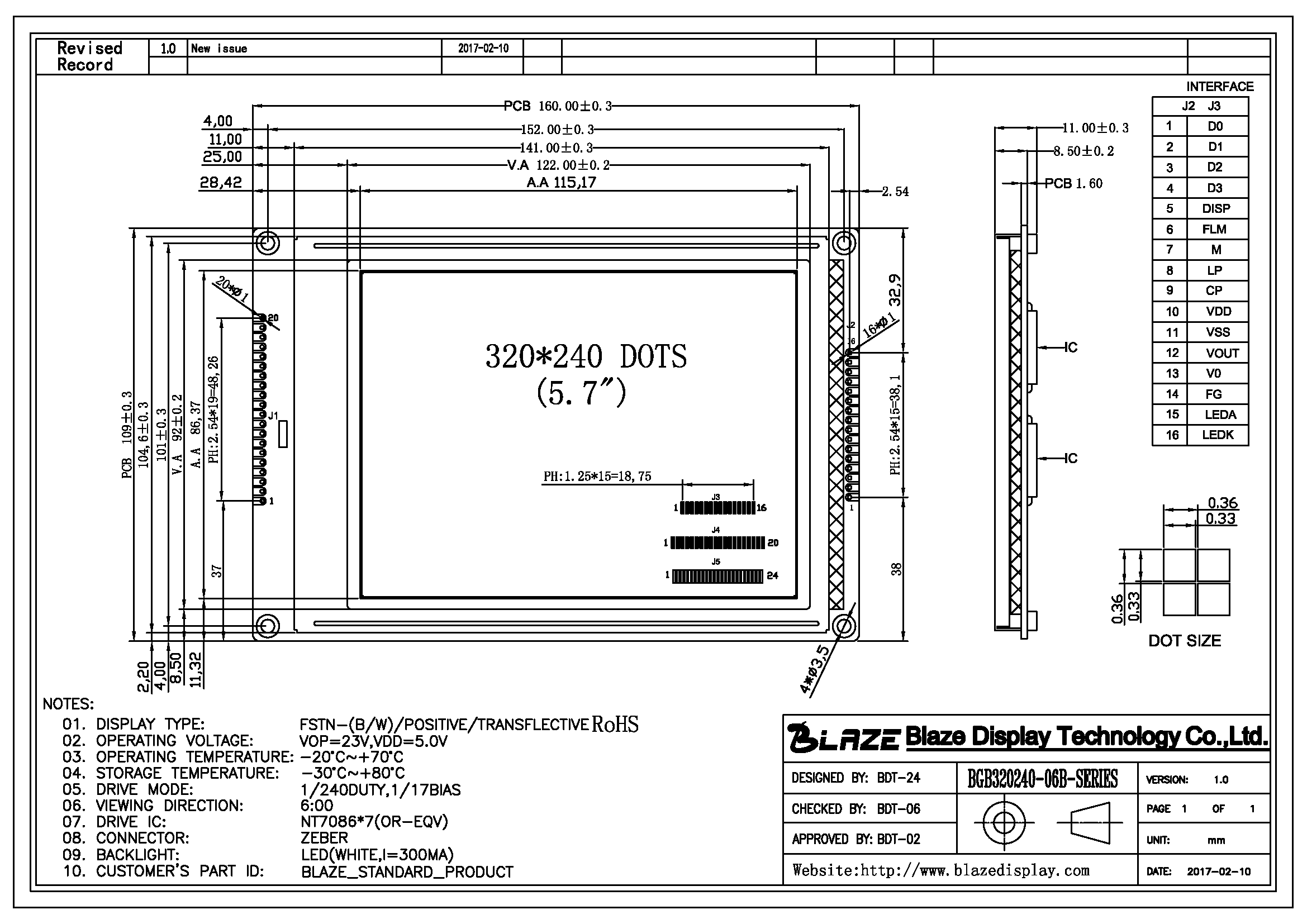

Mechanical Data |
|||
|
Item |
Standard Value |
Unit |
|
|
Module Dimension |
160.0 x 109.0 x 11.0 |
mm |
|
|
Viewing Area |
122.0 x 92.0 |
mm |
|
|
Mounting Hole |
152.0 x 101.0 |
mm |
|
|
Dots Pitch |
0.36 x 0.36 |
mm |
|
|
Dots Size |
0.30 x 0.30 |
mm |
|
|
|
|||
|
Electrical Characteristics |
|||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
|
Input Voltage |
VDD |
5 |
V |
|
Recommended LCD Driving |
VDD-VO |
23.6 |
V |
