BDT-T3237-02
Model No. BDT-T3237-02

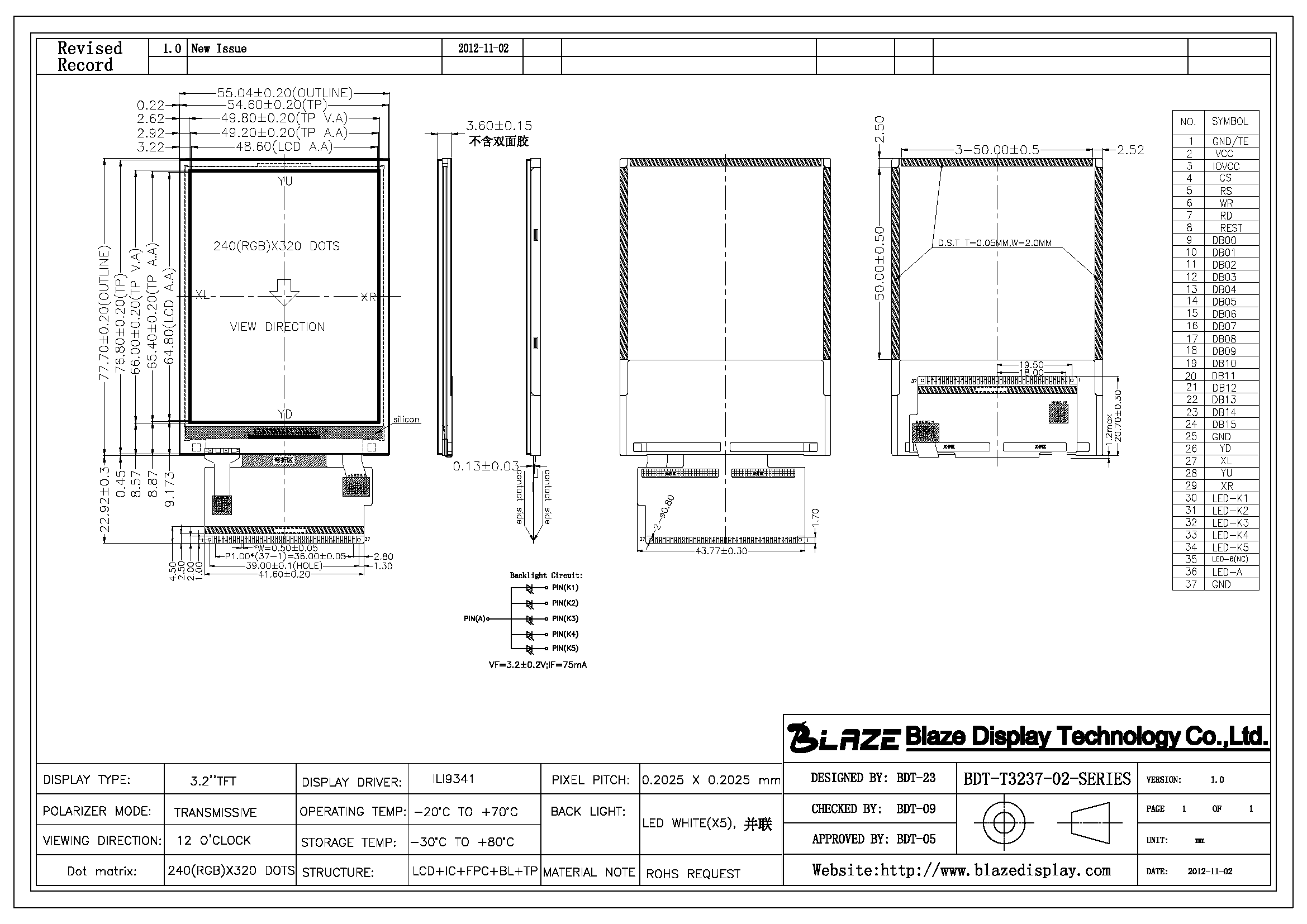

Outline size（mm）： 77.70 × 55.04 × 3.60
LCD TFT：71.00 × 51.60
Active Area： 64.80 × 48.60
Controller IC： ILI9341
Interface： 16-bit Parallel
TP: Optional
Backlight：LED
Part Number: BDT-T3237-02
● Display Format: 240 x 320
● Size: 3.2"
● View Direction:12H
● Interface: MCU
● Built-in Controller: ILI9341
● Control-Board: No
● Brightness(cd/m²): 200
● Frame Through Hole: No
● Touch Screen: Optional
Blaze Display is one of the best China Color TFT LCD Display BDT-T3237-02 manufacturers and suppliers. We are always at your service.
|
Interface |
|||||||||||||
|
NO |
Symbol |
Function |
|||||||||||
|
1 |
GND |
Ground |
|||||||||||
|
2 |
VCC |
Power supply |
|||||||||||
|
3 |
IOVCC |
Digital IO Pad power supply(1.8V/2.8V) |
|||||||||||
|
4 |
CS |
Chip select pin |
|||||||||||
|
5 |
RS |
Command and Data select pin |
|||||||||||
|
6 |
/WR |
Write enable pin |
|||||||||||
|
7 |
/RD |
Read enable pin |
|||||||||||
|
8 |
/RESET |
Reset pin. |
|||||||||||
|
9-24 |
DB00-DB15 |
Data Bus |
|||||||||||
|
25 |
GND |
Ground |
|||||||||||
|
26 |
YD |
Touch panel connect PIN |
|||||||||||
|
27 |
XL |
Touch panel connect PIN |
|||||||||||
|
28 |
YU |
Touch panel connect PIN |
|||||||||||
|
29 |
XR |
Touch panel connect PIN |
|||||||||||
|
30-34 |
LEDK1-5 |
Cathode pin of backlight |
|||||||||||
|
35 |
NC |
NC |
|||||||||||
|
36 |
LEDA |
Anode pin of backlight |
|||||||||||
|
37 |
GND |
Ground |
|||||||||||
|
|
|||||||||||||
|
General Specifications |
|||||||||||||
|
Item |
Dimension |
Unit |
|||||||||||
|
Size |
3.2 |
inch |
|||||||||||
|
Dot Matrix |
240 × RGB × 320 (TFT) |
dots |
|||||||||||
|
Module dimension |
77.70(W) × 55.04(H) × 3.60(D) |
mm |
|||||||||||
|
Active area |
64.80 × 48.60 |
mm |
|||||||||||
|
Dot pitch |
0.2025 × 0.2025 |
mm |
|||||||||||
|
LCD type |
TFT, Normally White, Transmissive |
||||||||||||
|
View Direction |
12 o'clock |
||||||||||||
|
Gray Scale Inversion Direction |
--- |
||||||||||||
|
Backlight Type |
|||||||||||||
