BDT-T3537-01
Model No. BDT-T3537-01

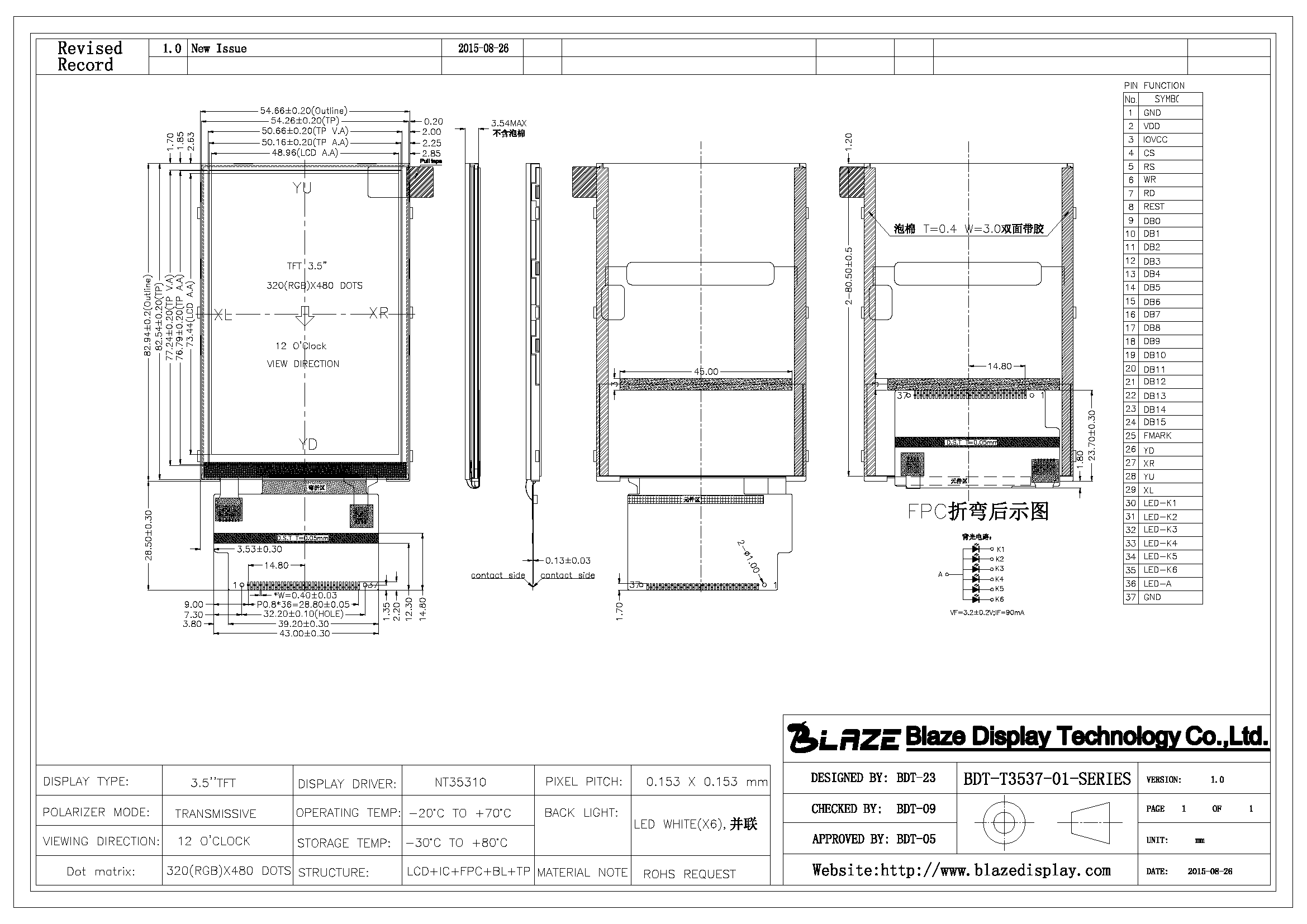

Outline size（mm）： 54.66 x 82.94 x 3.54
LCD TFT：52.96 x 81.34
Active Area： 48.96 × 73.44
Controller IC： NT35310.
Interface： 16BIT MCU
TP: RTP
Backlight：LED
Part Number: BDT-T3537-01
● Display Format: 320 x 480
● Size: 3.5"
● View Direction:12H
● Interface: 16BIT MCU
● Built-in Controller: NT35310
● Control-Board: No
● Brightness(cd/m²): 350
● Frame Through Hole: No
● Touch Screen: RTP
Blaze Display is one of the best China Color TFT LCD Display BDT-T3537-01 manufacturers and suppliers. We are always at your service.
Interface |
|||||||||||||
|
NO |
Symbol |
Function |
|||||||||||
|
1 |
GND |
Ground |
|||||||||||
|
2 |
VDD |
Analog power supply |
|||||||||||
|
3 |
IOVCC |
Digital IO Pad power supply |
|||||||||||
|
4 |
CS |
Chip select pin |
|||||||||||
|
5 |
RS |
Command and Data select pin |
|||||||||||
|
6 |
WR |
Write enable pin |
|||||||||||
|
7 |
RD |
Read enable pin |
|||||||||||
|
8 |
RESET |
Reset pin. |
|||||||||||
|
9-24 |
DB0-DB15 |
Data Bus |
|||||||||||
|
25 |
FMARK |
Frame head pulse signal. |
|||||||||||
|
26 |
YD |
Touch Panel control |
|||||||||||
|
27 |
XR |
Touch Panel control |
|||||||||||
|
28 |
YU |
Touch Panel control |
|||||||||||
|
29 |
XL |
Touch Panel control |
|||||||||||
|
30-35 |
LED-K1-K6 |
Cathode pin of backlight |
|||||||||||
|
36 |
LED-A |
Anode pin of backlight |
|||||||||||
|
37 |
GND |
Ground |
|||||||||||
|
|
|||||||||||||
|
General Specifications |
|||||||||||||
|
Item |
Dimension |
Unit |
|||||||||||
|
Size |
3.5 |
inch |
|||||||||||
|
Dot Matrix |
320 × RGB × 480 (TFT) |
dots |
|||||||||||
|
Module dimension |
54.66(W) × 82.94(H) × 3.54(D) |
mm |
|||||||||||
|
Active area |
48.96 × 73.44 |
mm |
|||||||||||
|
Dot pitch |
0.153 × 0.153 |
mm |
|||||||||||
|
LCD type |
TFT, Normally White, Transmissive |
||||||||||||
|
View Direction |
12 o'clock |
||||||||||||
|
Gray Scale Inversion Direction |
--- |
||||||||||||
|
Backlight Type |
LED, Normally White |
||||||||||||
|
With /Without TP |
RTP |
||||||||||||
|
Surface |
---- |
||||||||||||
|
|
|||||||||||||
|
Absolute Maximum Ratings |
|||||||||||||
|
Item |
Symbol |
Min |
Typ |
Max |
Unit |
||||||||
|
| |||||||||||||
