BDT-T4051-01
Model No. BDT-T4051-01

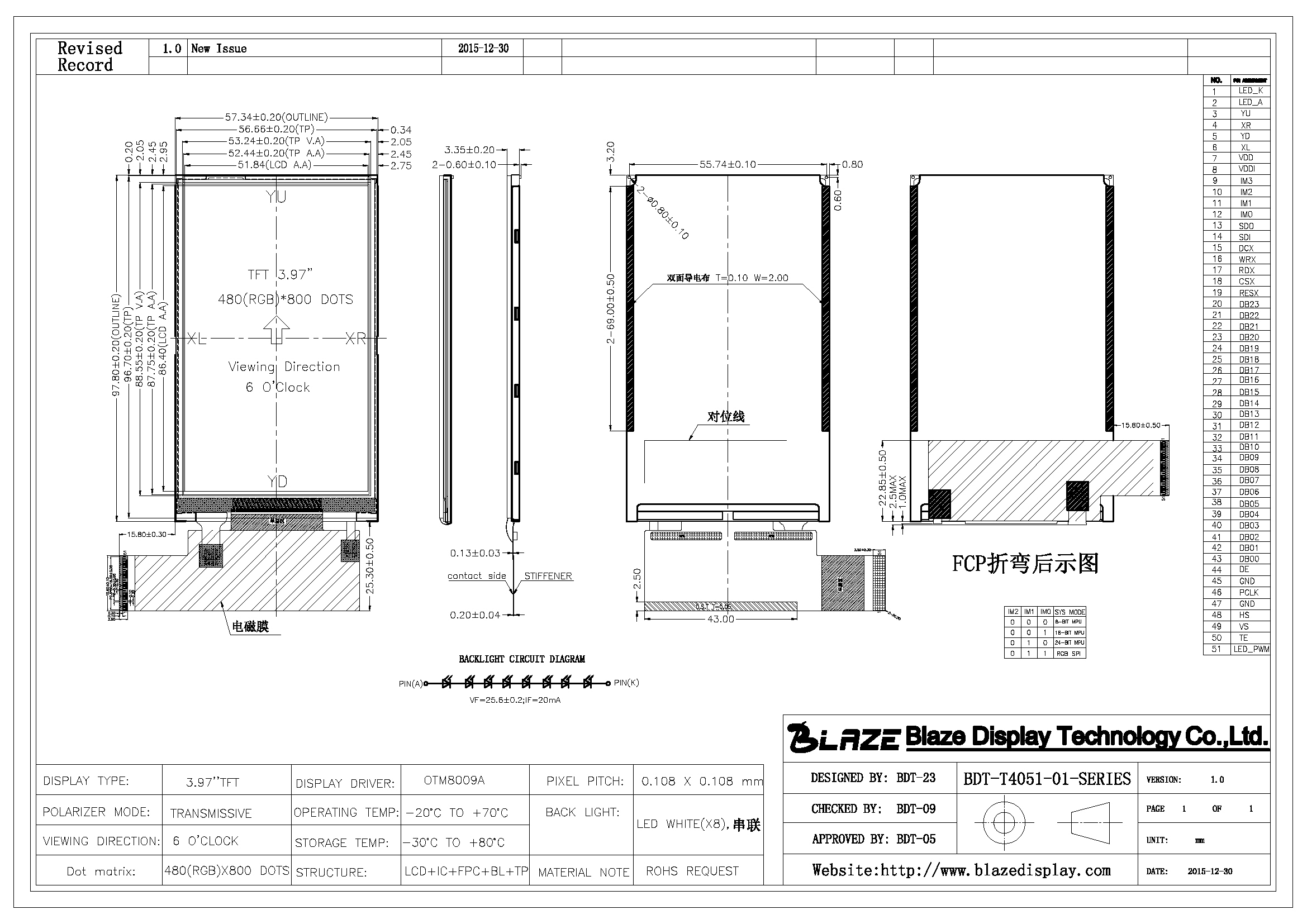

Outline size（mm）： 97.80 × 57.34 × 3.35
LCD TFT：93.90 × 54.40
Active Area： 86.40 × 51.84
Controller IC： OTM8009A
Interface： 24-bit Parallel
TP: Optional
Backlight：LED
Part Number: BDT-T4051-01
● Display Format: 480 x 800
● Size: 3.97"
● View Direction:6H
● Interface: MCU
● Built-in Controller: OTM8009A
● Control-Board: No
● Brightness(cd/m²): 200
● Frame Through Hole: No
● Touch Screen: Optional
Blaze Display is one of the best China Color TFT LCD Display BDT-T4051-01 manufacturers and suppliers. We are always at your service.
Interface |
|||||||||||||
|
NO |
Symbol |
Function |
|||||||||||
|
1 |
LED-K |
Cathode pin of backlight |
|||||||||||
|
2 |
LEDA |
Anode pin of backlight |
|||||||||||
|
3 |
YU |
Touch panel connect PIN |
|||||||||||
|
4 |
XR |
Touch panel connect PIN |
|||||||||||
|
5 |
YD |
Touch panel connect PIN |
|||||||||||
|
6 |
XL |
Touch panel connect PIN |
|||||||||||
|
7 |
VDD |
Analog power supply |
|||||||||||
|
8 |
VDDI |
Digital IO Pad power supply |
|||||||||||
|
9~12 |
IM3~IM0 |
Selects the interface |
|||||||||||
|
13 |
SDO |
Serial output signal |
|||||||||||
|
14 |
SDI |
Serial input signal |
|||||||||||
|
15 |
DCX |
Command and Data select pin |
|||||||||||
|
16 |
WRX |
Write enable pin |
|||||||||||
|
17 |
RDX |
Read enable pin |
|||||||||||
|
18 |
CSX |
Chip select pin |
|||||||||||
|
19 |
RESX |
Rest signal |
|||||||||||
|
20~43 |
DB23~DB00 |
Data Bus |
|||||||||||
|
44 |
DE |
Data enable signal |
|||||||||||
|
45 |
GND |
Ground |
|||||||||||
|
46 |
PCLK |
Pixel clock signal in RGB I/F mode |
|||||||||||
|
47 |
GND |
Ground |
|||||||||||
|
48 |
HS |
Horizontal sync. signal in RGB I/F mode |
|||||||||||
|
49 |
VS |
Vertical sync. signal in RGB I/F mode. |
|||||||||||
|
50 |
TE |
Frame head pulse signal. |
|||||||||||
|
51 |
LED_PWM |
PWM type control signal for brightness of the LED backlight |
|||||||||||
|
|
|||||||||||||
|
General Specifications |
|||||||||||||
|
Item |
Dimension |
Unit |
|||||||||||
|
Size |
3.97 |
inch |
|||||||||||
|
Dot Matrix |
480 × RGB × 800 (TFT) |
dots |
|||||||||||
|
Module dimension |
97.80(W) × 57.34(H) × 3.35(D) |
mm |
|||||||||||
|
Active area |
86.40 × 51.84 |
mm |
|||||||||||
|
Dot pitch |
0.108 × 0.108 |
mm |
|||||||||||
