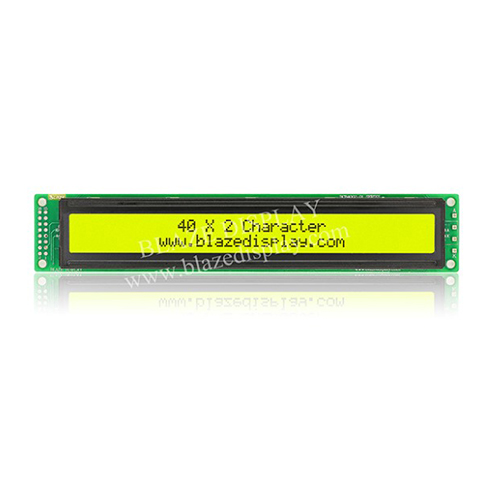

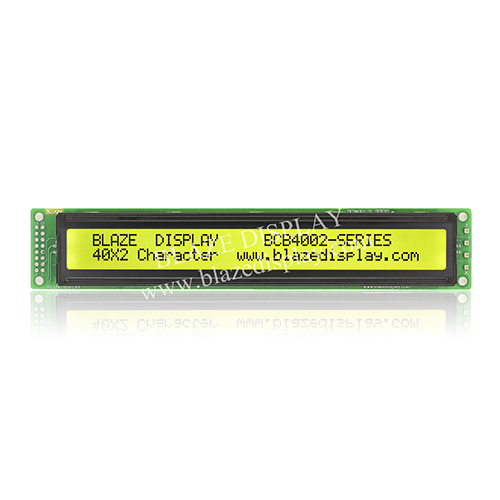

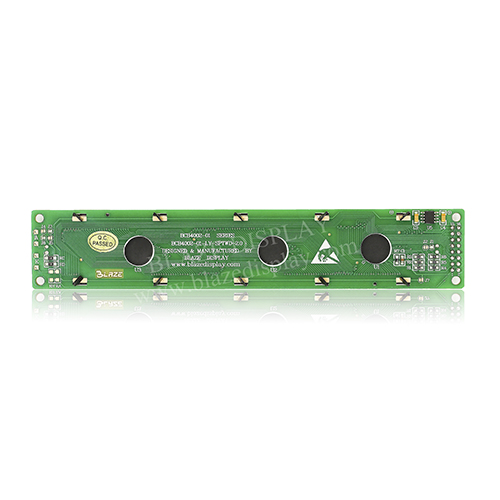

Символьный ЖК Индикатор BCB4002-01
Model No. BCB4002-01

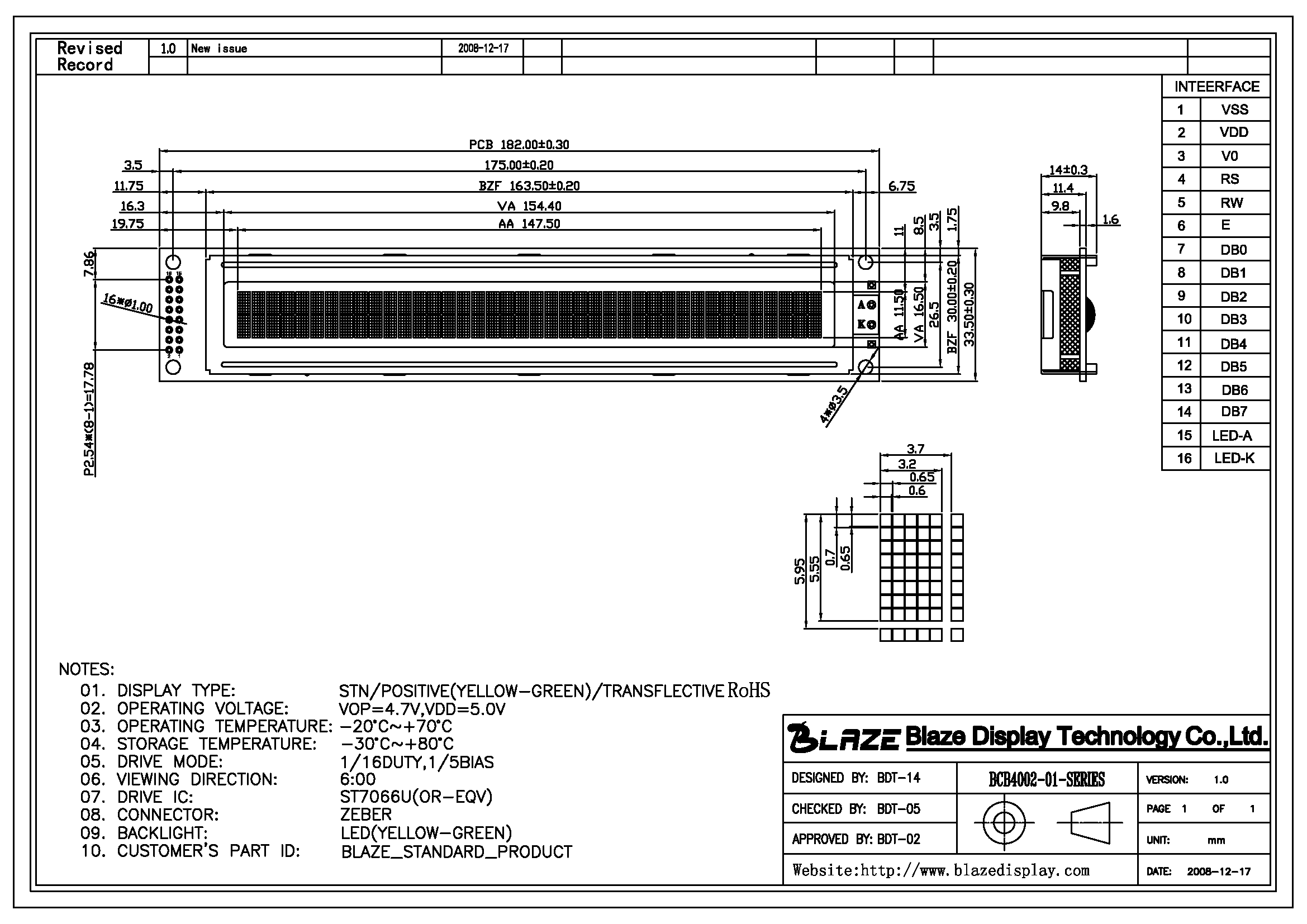

Outline size（mm）： 182.00 × 33.50 × 14.00
Viewing Area： 154.40 × 16.50
Active Area： 147.50 × 11.50
Controller IC： ST7066U or Eqv.
Interface： Parallel
Backlight：LED
Remarks： 2×8PIN
Part No. ：BCB4002-01
● Character LCD 40x2 (5 x 8 dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (ST7066U or Equivalent)
● +3.3V / +5.0V power supply
● 1/16 Duty , 1/5 Bias
● Viewing Direction: 6H / 12H
● Interface: 6800 4/8-bit parallel, optional SPI / I2C (RW1063 IC)
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)
|
Interface Pin Function |
||||||||||||
|
Pin No. |
Symbol |
Description |
||||||||||
|
1 |
VSS |
Ground |
||||||||||
|
2 |
VDD |
Power supply for logic |
||||||||||
|
3 |
VO |
Contrast Adjustment |
||||||||||
|
4 |
RS |
Data/ Instruction select signal |
||||||||||
|
5 |
R/W |
Read/Write select signal |
||||||||||
|
6 |
E |
Enable signal for IC1 |
||||||||||
|
7~14 |
DB0~DB7 |
Data bus line |
||||||||||
|
15 |
LED-A |
Backlight power supply |
||||||||||
|
16 |
LED-K |
Backlight ground |
||||||||||
|
|
||||||||||||
|
Mechanical Data |
||||||||||||
|
Item |
Standard Value |
Unit |
||||||||||
|
Module Dimension |
182.0 x 33.5 |
mm |
||||||||||
|
Viewing Area |
154.4 x 16.5 |
mm |
||||||||||
|
Mounting Hole |
175.0 x 30.0 |
mm |
||||||||||
|
Character Size |
3.2 x 5.55 |
mm |
||||||||||
|
|
||||||||||||
|
Electrical Characteristics |
||||||||||||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
|||||||||
|
Input Voltage |
VDD |
5 |
V |
|||||||||
|
Recommended LCD Driving |
VDD-VO |
3.7 |
V |
|||||||||
|
|
||||||||||||
|
Display Character Address Code |
||||||||||||
|
Display Position |
1 |
- |
- |
- |
- |
- |
- |
40 |
||||
|
DD RAM Address |
00 |
- |
- |
- |
- |
- |
- |
27 |
||||
|
DD RAM Address |
40 |
- |
- |
- |
- |
- |
- |
67 |
||||
