BDT-T5040-06
Model No. BDT-T5040-06

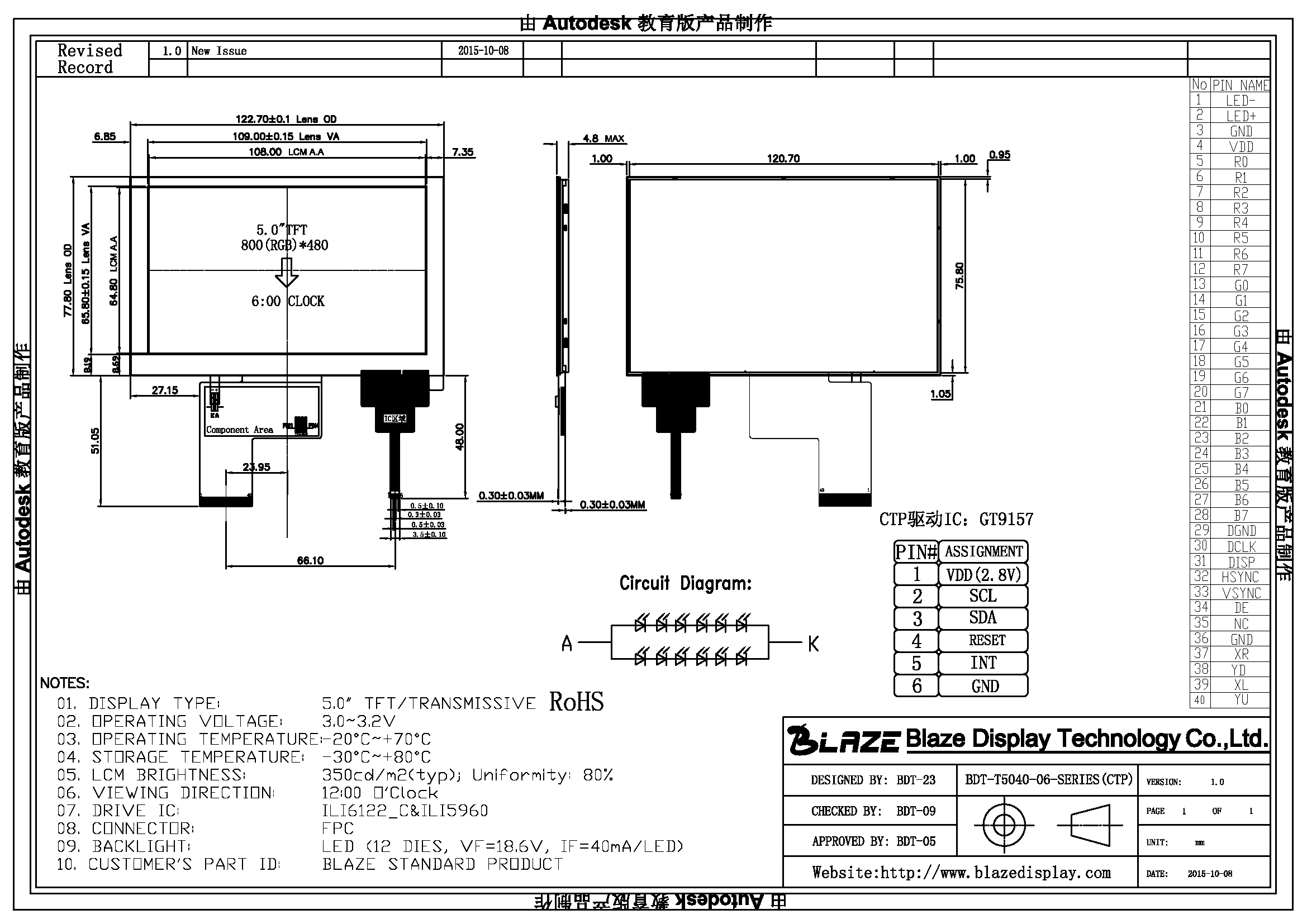

Outline size（mm）： 122.70 × 77.80 × 4.80
Viewing Area：109.00 × 65.80
Active Area： 108.00 × 64.80
Controller IC：ILI6122_C&ILI5960
Interface： RGB
TP: Optional
Backlight：LED
Part Number: BDT-T5040-06
● Display Format: 800 x 480
● Size: 5.0"
● View Direction:12H
● Interface: RGB
● Built-in Controller: ILI6122_C&ILI5960
● Control-Board: No
● Brightness(cd/m²): 300
● Frame Through Hole: No
● Touch Screen: Optional
Blaze Display is one of the best China Color TFT LCD Display BDT-T5040-06 manufacturers and suppliers. We are always at your service.
Interface |
|||||||||||||
|
NO |
Symbol |
Function |
|||||||||||
|
1 |
LED- |
Power for LED backlight cathode |
|||||||||||
|
2 |
LED+ |
Power for LED backlight anode(25.6V,30mA) |
|||||||||||
|
3 |
GND |
Power ground |
|||||||||||
|
4 |
VDD |
Power supply for digital block. (+3.3V) |
|||||||||||
|
5~12 |
R0-R7 |
Red data |
|||||||||||
|
13~20 |
G0-G7 |
Green data |
|||||||||||
|
21~28 |
B0-B7 |
Blue data |
|||||||||||
|
29 |
DGND |
Power ground |
|||||||||||
|
30 |
DCLK |
Clock for input data |
|||||||||||
|
31 |
DISP |
Display on/off |
|||||||||||
|
32 |
HSYNC |
Horizontal sync signal |
|||||||||||
|
33 |
VSYNC |
Vertical sync signal |
|||||||||||
|
34 |
DE |
Input data enable control. |
|||||||||||
|
35 |
NC |
NO connecter |
|||||||||||
|
36 |
GND |
Power ground |
|||||||||||
|
37 |
XR |
Touch Panel |
|||||||||||
|
38 |
YD |
Touch Panel |
|||||||||||
|
39 |
XL |
Touch Panel |
|||||||||||
|
40 |
YU |
Touch Panel |
|||||||||||
|
|
|||||||||||||
|
General Specifications |
|||||||||||||
|
Item |
Dimension |
Unit |
|||||||||||
|
Size |
5.0
|
inch |
|||||||||||
|
Dot Matrix |
800 (RGB) ×480 (TFT) |
dots |
|||||||||||
|
Module dimension |
122.70(W) × 77.80(H) × 4.8(D) |
mm |
|||||||||||
|
Active area |
108.00 × 64.80 |
mm |
|||||||||||
|
Dot pitch |
---- |
mm |
|||||||||||
|
LCD type |
TFT, Normally White, Transmissive |
||||||||||||
|
View Direction |
12 o'clock |
||||||||||||
|
Gray Scale Inversion Direction |
--- |
||||||||||||
|
Backlight Type |
LED, Normally White |
||||||||||||
|
With /Without TP |
with CTP |
||||||||||||
|
Surface |
---- |
||||||||||||
|
|
|||||||||||||
|
Absolute Maximum Ratings |
|||||||||||||
|
Item |
