Interface

NO

Symbol

Function

1~2

LED-A

Power for LED backlight anode

3~4

LED-K

Power for LED backlight cathode

5

GND

Power ground

6

VCOM

VCOM output

7

DVDD

Power supply for digital block.

8

MODE

DE / SYNC mode select.

9

DE

Input data enable control.

10

VS

Vertical sync signal

11

HS

Horizontal sync signal

12~19

B7~B0

Blue data

20~27

G7~G0

Green data

28~35

R7~R0

Red data

36

GND

Power ground

37

DCLK

Clock for input data

38

GND

Power ground

39

L/R

Source shift direction control.

40

U/D

Gate scan direction control

41

VDDG(VGH)

Power supply for gate drive output high

42

VEEG（VGL）

Power supply for gate drive output low

43

AVDD

Power supply for analog block.

Global reset

44

RSTB

Hardware global reset. Low active

45

NC

NC

46

VCOM

VCOM output

47

DITH

Dithering function enable control.

48

GND

Power ground

49~50

NC

NC

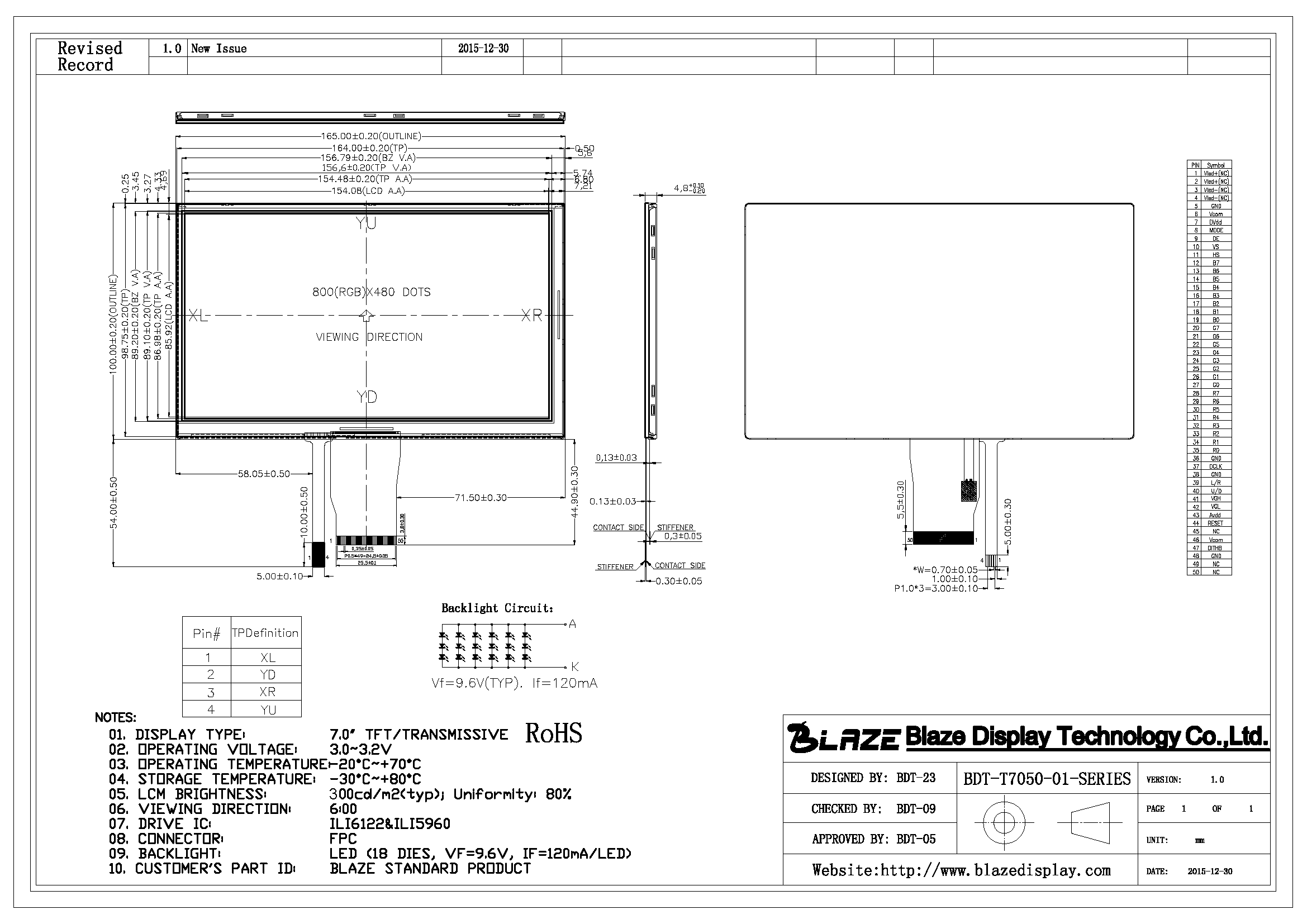

General Specifications

Item

Dimension

Unit

Size

7.0

inch

Dot Matrix

800 × RGB × 480 (TFT)

dots

Module dimension

165.00(W) × 100.00(H) × 4.80(D)

mm

Active area
