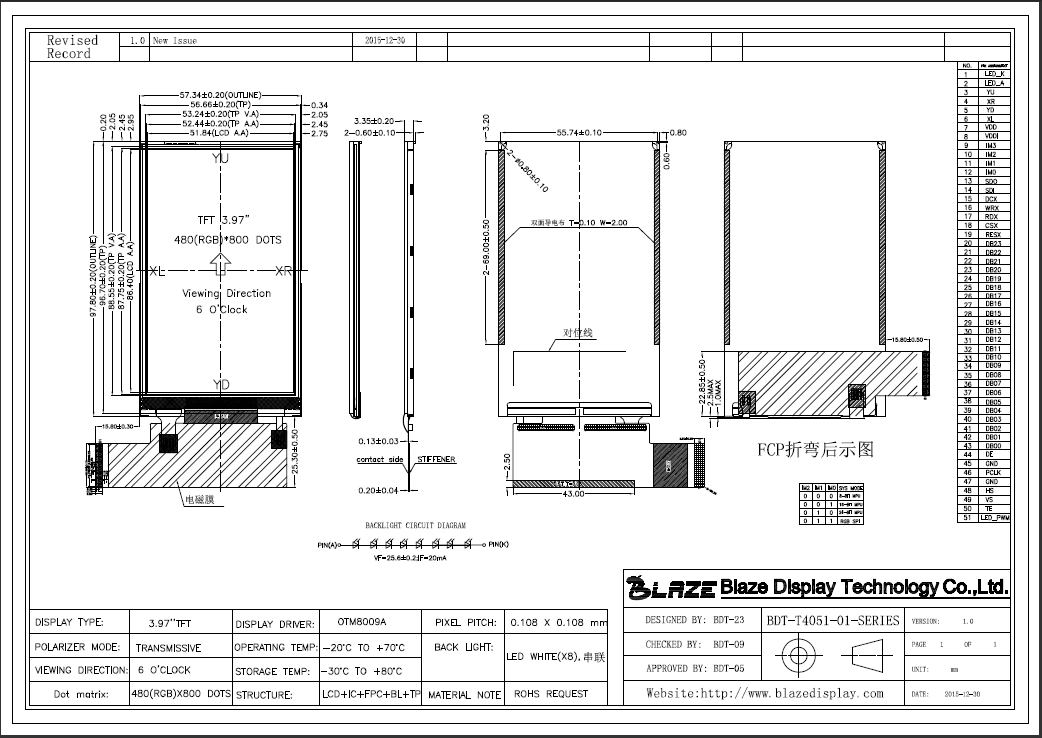

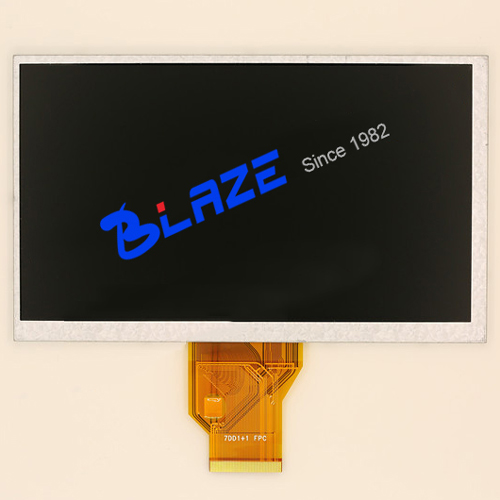

BDT-T4051-01
Modelo No. BDT-T4051-01
Outline size(mm): 97.80 × 57.34 × 3.35 <br/>
LCD TFT:93.90 × 54.40 <br/>
Active Area: 86.40 × 51.84 <br/>
Controller IC: OTM8009A <br/>
Interface: 24-bit Parallel <br/>
TP: Optional <br/>
Backlight:LED <br/>
Part Number: BDT-T4051-01
● Display Format: 480 x 800
● Size: 3.97"
● View Direction:6H
● Interface: MCU
● Built-in Controller: OTM8009A
● Control-Board: No
● Brightness(cd/m²): 200
● Frame Through Hole: No
● Touch Screen: Optional
SPECIFICATIONS
Interface |
|||||||||||||
NO |
Symbol |
Function |
|||||||||||
1 |
LED-K |
Cathode pin of backlight |
|||||||||||
2 |
LEDA |
Anode pin of backlight |
|||||||||||
3 |
YU |
Touch panel connect PIN |
|||||||||||
4 |
XR |
Touch panel connect PIN |
|||||||||||
5 |
YD |
Touch panel connect PIN |
|||||||||||
6 |
XL |
Touch panel connect PIN |
|||||||||||
7 |
VDD |
Analog power supply |
|||||||||||
8 |
VDDI |
Digital IO Pad power supply |
|||||||||||
9~12 |
IM3~IM0 |
Selects the interface |
|||||||||||
13 |
SDO |
Serial output signal |
|||||||||||
14 |
SDI |
Serial input signal |
|||||||||||
15 |
DCX |
Command and Data select pin |
|||||||||||
16 |
WRX |
Write enable pin |
|||||||||||
17 |
RDX |
Read enable pin |
|||||||||||
18 |
CSX |
Chip select pin |
|||||||||||
19 |
RESX |
Rest signal |
|||||||||||
20~43 |
DB23~DB00 |
Data Bus |
|||||||||||
44 |
DE |
Data enable signal |
|||||||||||
45 |
GND |
Ground |
|||||||||||
46 |
PCLK |
Pixel clock signal in RGB I/F mode |
|||||||||||
47 |
GND |
Ground |
|||||||||||
48 |
HS |
Horizontal sync. signal in RGB I/F mode |
|||||||||||
49 |
VS |
Vertical sync. signal in RGB I/F mode. |
|||||||||||
50 |
TE |
Frame head pulse signal. |
|||||||||||
51 |
LED_PWM |
PWM type control signal for brightness of the LED backlight |
|||||||||||
|
|||||||||||||
