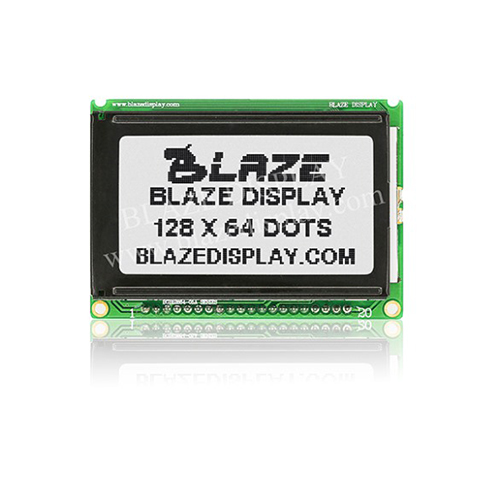

Pantalla Grafica LCD BGB12864-05A
Modelo No. BGB12864-05A
Outline size（mm）： 75.00 × 52.70 × 9.10
Viewing Area：60.00 × 32.60
Active Area： 55.00 × 27.48
Controller IC： AIP31108 or Eqv.
Interface： SPI & Parallel
Remarks： 1×20PIN
Backlight：LED
Part Number: BGB12864-05A
● Character LCD 128 x 64 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (AIP31108 or Equivalent)
● +3.3V / +5.0V power supply
● 1/64 duty, 1/9bias
● Viewing Direction: 6H / 12H
● Interface: 6800 4/8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
