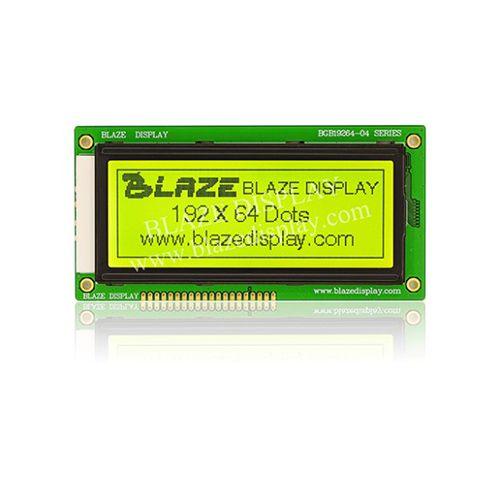

Pantalla Grafica LCD BGB19264-04
Modelo No. BGB19264-04
Outline size（mm）： 130.00 × 65.00 × 12.50
Viewing Area：104.00 × 39.00
Active Area： 97.50 × 32.47
Controller IC： AIP31108 or Eqv.
Interface： SPI & Parallel
Remarks： 1×20PIN
Backlight：LED<br/>
Part Number: BGB19264-04
● Grahpic LCD 192 x 64 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (AIP31108 or Equivalent)
● +3.3V / +5.0V power supply
● 1/64 duty, 1/9bias
● Viewing Direction: 6H / 12H
● Interface: 6800 8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
