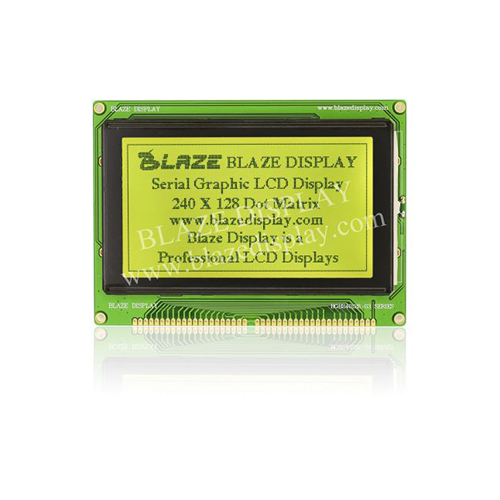

Pantalla Gráfica LCD BGB240128-03A
Modelo No. BGB240128-03A
Outline size（mm）： 144.00 × 104.00 × 12.00
Viewing Area：114.00 × 64.00
Active Area： 107.97 × 57.57
Controller IC： RA6963 or Eqv.
Interface： 8080 Parallel
Remarks： 1×21/2x10PIN
Backlight：LED
Part Number: BGB240128-03A
● Character LCD 240 x 128 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller ((RA6963 or Equivalent)
● +3.3V / +5.0V power supply
● 1/128 duty, 1/12bias
● Viewing Direction: 6H / 12H
● Interface: 8080 8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
