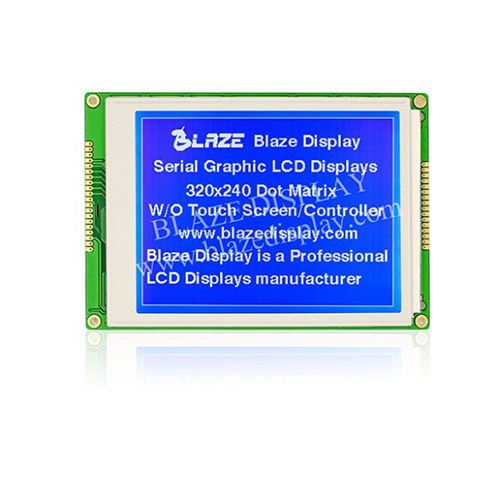

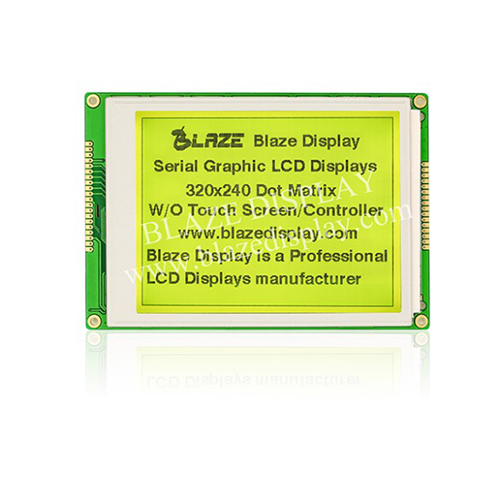

Pantalla Gráfica LCD BGB320240-06A
Modelo No. BGB320240-06A
Outline size（mm）：160.00 × 109.00 × 12.10
Viewing Area：122.00 × 92.00
Active Area： 115.17 × 86.37
Controller IC： RA8835 or Eqv.
Interface： 6800/8080 8-bit Parallel
Remarks： 1×20/1x16/1x24PIN
Backlight：LED
Part Number: BGB320240-06A
● Graphic LCD 320 x 240 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller ((RA8835 or Equivalent)
● +3.3V / +5.0V power supply
● 1/240 duty , 1/17bias
● Viewing Direction: 6H / 12H
● Interface: 6800/8080 8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
