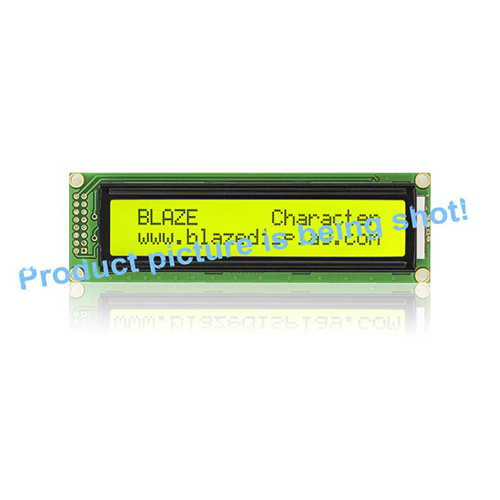

BCB1602-04
Modelo No. BCB1602-04
Outline size（mm）： 80.70 × 40.00 × 8.60
Viewing Area： 66.70 × 18.00
Active Area： 62.76 × 11.60
Controller IC： ST7066U or Eqv.
Interface： Parallel
Backlight：LED
Remarks： 1×16PIN
● Character LCD 16x2 (5 x 8 dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (ST7066 or Equivalent)
● +3.3V / +5.0V power supply
● 1/16 Duty , 1/5 Bias
● Viewing Direction: 6H / 12H
● Interface: 6800 4/8-bit parallel, optional SPI / I2C (RW1063 IC)
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)
