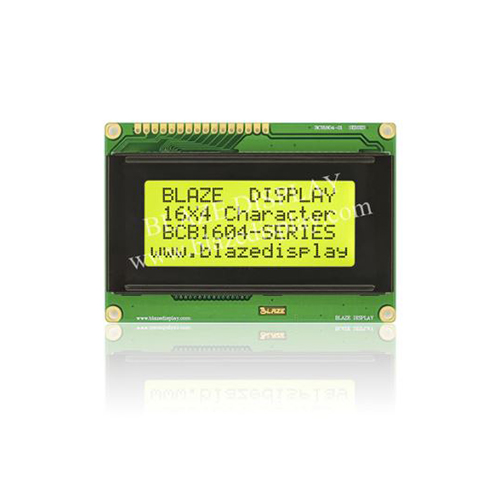

BCB1604-01D
Modelo No. BCB1604-01D
Outline size（mm）：87.00× 60.00× 12.80
Viewing Area： 62.00 × 25.60
Active Area： 56.20 × 20.80
Controller IC： ST7066U or Eqv.
Interface： Parallel<
Backlight：LED
Remarks： 1×16PIN
● Character LCD 16×4 (5 x 8 dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (ST7066 or Equivalent)
● +3.3V / +5.0V power supply
● 1/16 Duty , 1/5 Bias
● Viewing Direction: 6H / 12H
● Interface: 6800 4/8-bit parallel, optional SPI / I2C (RW1063 IC)
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T
● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)
|
SPECIFICATIONS |
|||||||||||
|
Interface Pin Function |
|||||||||||
|
Pin No. |
Symbol |
Description |
|||||||||
|
1 |
VSS |
Ground |
|||||||||
|
2 |
VDD |
Power supply for logic |
|||||||||
|
3 |
VO |
Contrast Adjustment |
|||||||||
|
4 |
RS |
Data/ Instruction select signal |
|||||||||
|
5 |
R/W |
Read/Write select signal |
|||||||||
|
6 |
E |
Enable signal |
|||||||||
|
7~14 |
DB0~DB7 |
Data bus line |
|||||||||
|
15 |
LED-A |
Backlight power supply |
|||||||||
|
16 |
LED-K |
Backlight ground |
|||||||||
|
|
|||||||||||
|

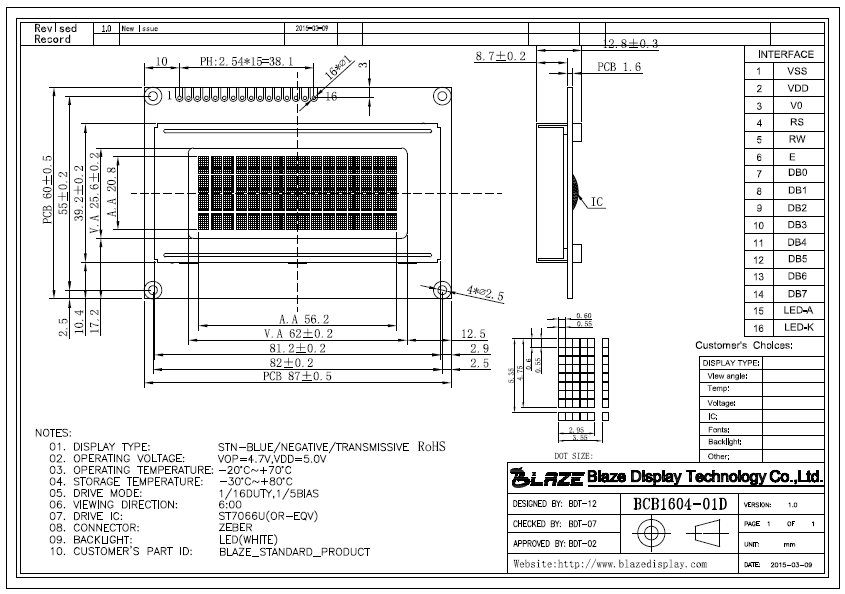

Mechanical Data |
|||||||||||
|
Item |
Standard Value |
Unit |
|||||||||
|
Module Dimension |
87.0x 60.0 |
mm |
|||||||||
|
Viewing Area |
62.0 x25.6 |
mm |
|||||||||
|
Mounting Hole |
82.0x 55.0 |
mm |
|||||||||
|
Character Size |
2.95x 4.75 |
mm |
|||||||||
|
|
|||||||||||
|
Electrical Characteristics |
|||||||||||
|
Item |
Symbol |
Standard Value (typ.) |
Unit |
||||||||
|
Input Voltage |
VDD |
5 |
V |
||||||||
|
Recommended LCD Driving |
VDD-VO |
3.7 |
V |
||||||||
|
|
|
|
|
||||||||
|
Display Character Address Code |
|||||||||||
|
Display Position |
1 |
- |
- |
- |
- |
- |
- |
16 |
|||
|
DD RAM Address(IC1) |
00 |
- |
- |
- |
- |
- |
- |
0F |
|||
|
DD RAM Address(IC1) |
40 |
- |
- |
- |
- |
- |
- |
4F |
|||
|
DD RAM Address(IC2) |
10 |
- |
- |
- |
- |
- |
- |
1F |
|||
|
DD RAM Address(IC2) |
50 |
- |
- |
- |
- |
- |
- |
5F |
|||
