BGB12232-03

Model No. BGB12232-03

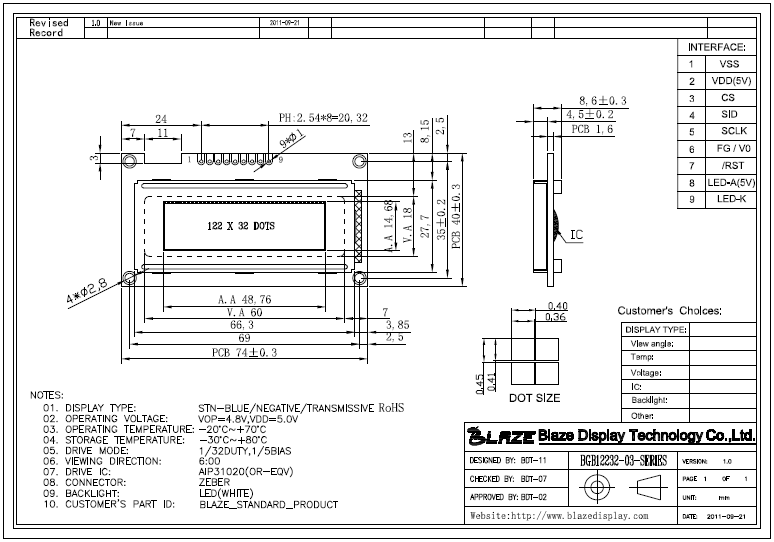

Outline sizemm): 74.00 × 40.00 × 8.60

Viewing Area60.00 × 18.00

Active Area 48.76 × 14.68

Controller IC AIP31020 or Eqv.

Interface SPI & Parallel

Remarks 1×9PIN

BacklightLED

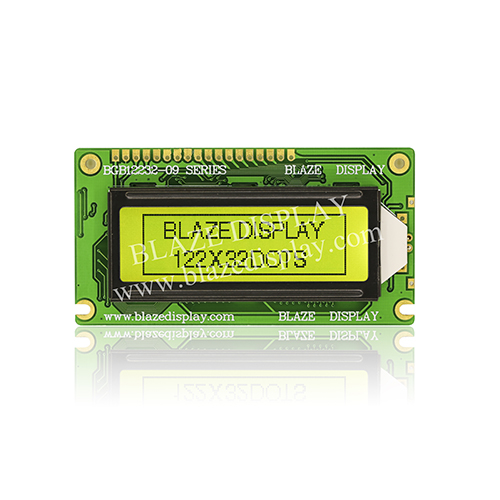

Part Number: BGB12232-03

● Character LCD 122 x 32 (dots)
● FSTN-Gray / STN-Gray / STN-YG / STN-Blue
● Built-in controller (AIP31020 or Equivalent)
● +3.3V / +5.0V power supply
● 1/32 duty, 1/5bias
● Viewing Direction: 6H / 12H
● Interface: 6800 4/8-bit parallel
● Backlight (Side LED): White / Green / Blue / Yellow-Green / RGB / Orange / Amber
● Temp: N.T / W.T / Super W.T

SPECIFICATIONS

Interface Pin Function

Pin No.

Symbol

Description

1

VSS

Ground(0V)

2

VDD(5V)

Power supply for logic(+5.0V)

3

CS

Chip Select

4

SID

Serial clock input

5

SCLK

Serial data input

6

FG / V0

Contrast Adjustment

7

/RST

reset

8

LED-A

Power supply for backlight

9

LED-K

Ground for backlight
